Removing left ventilation grille

Preliminary works

• Remove the left instrument panel SIDE PANEL .
• Remove the left instrument panel FINISHER .

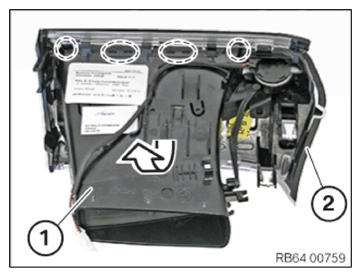

• Carefully release the latch mechanisms at the top and bottom in the marked areas.
• Feed out the ventilation grille (1) from the decorative strip (2) in the direction of the arrow.

Courtesy of BMW OF NORTH AMERICA, INC.
