51 45 Trim Panel, Instrument Panel
>>
51 45 382 Replace decorative strip on instrument panel at right (530i 2017-2022, 530i xDrive 2017-2022, 530e PHEV 2018-2022, 530e xDrive PHEV 2018-2022, 540i 2017-2022, 540i xDrive 2017-2022, M550i xDrive 2018-2022)
>>

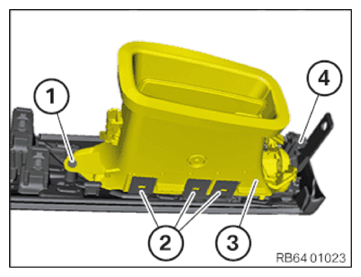

Removing right ventilation grille
Removing right ventilation grille
Loosen the screw
(1)
if necessary.
Carefully release the latch mechanisms
(2)
on the bottom.
Feed the ventilation grille
(3)
out of the decorative strip
(4)
upwards.
