Replace the trim panel for the storage shelf
NOTE:
The description is for one component only. The procedure is identical for all further components.

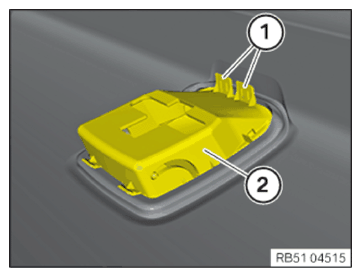

- Release the latch mechanisms (1) and feed out the cover (2).
- Clip in the cover (2) into the new trim panel for the storage shelf.

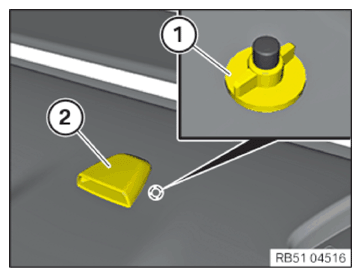

- Release the plastic nut (1) and remove the belt holder (2).
- Insert the belt holder (2) into the new trim panel for the storage shelf and fasten it with the plastic nut (1).

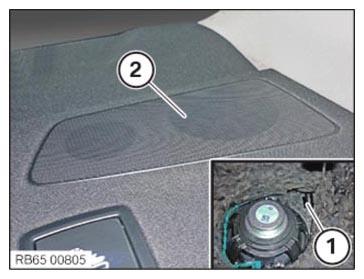

- Detach the latch mechanism (1) of the speaker cover (2) and press the speaker cover (2) out of the trim panel for the storage shelf.

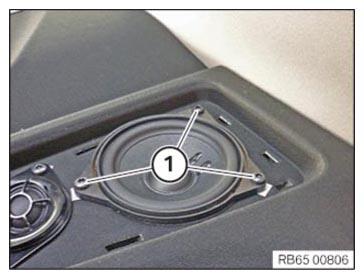

- Loosen screws (1).
- Remove mid-range speaker and disconnect the plug connection.

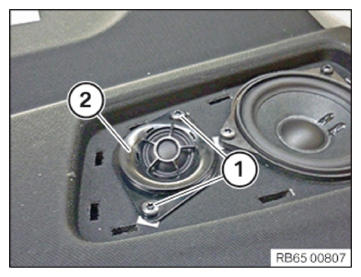

- Loosen screws (1).
- Disconnect plug connection.
- Remove the tweeter (2).
- Insert the tweeter (2) in the new trim panel for the storage shelf.
- Tighten the screws (1).
TIGHTENING TORQUES SPECIFICATION
| Speaker to storage shelf/support | ||
|---|---|---|
| Screw | Tightening torque | 1.8 Nm |
- Connect the plug connection.
- Insert the mid-range speaker.
- Tighten the screws (1).
TIGHTENING TORQUES SPECIFICATION
| Speaker to storage shelf/support | ||
|---|---|---|
| Screw | Tightening torque | 1.8 Nm |
- Correctly position the speaker cover (2) and engage it in the trim panel for the storage shelf.
- Properly engage the latch mechanism (1).
