Installing loading edge trim

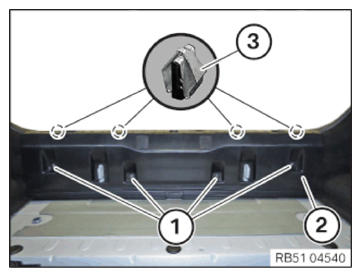

• Insert the loading edge trim (2) from the top at the clamps (3) and clip it in.
• Mount the expanding rivets (1).
• Position the edge protection of the tailgate above the loading edge trim (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up Work

• Install the luggage compartment floor TRIM PANEL .
