Installing the underbody protection of the steering gear or the front stiffening plate
NOTE:
TECHNICAL INFORMATION
Different variants may be installed depending on the vehicle equipment.
Different variants may be installed depending on the vehicle equipment.

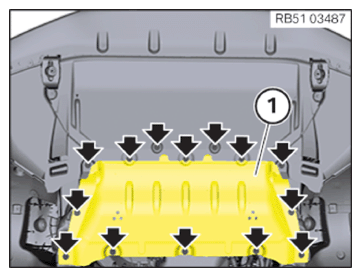

- Version A:
Insert steering gear aggregate protective plate (1).
Tighten screws (arrows).
TIGHTENING TORQUES SPECIFICATION
| Underbody protection | ||
|---|---|---|
| Screw | Tightening torque | 3 Nm |

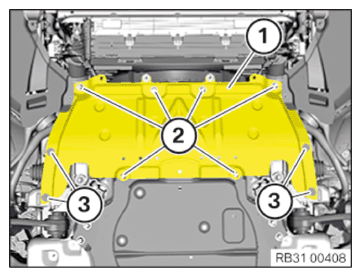

- Version B:
Replace screws (2).
Parts: Screws
Position the front stiffening plate (1).
Tighten the screws (2).
TIGHTENING TORQUES SPECIFICATION
| Stiffening plate to front axle support | ||
|---|---|---|
| M8 Replace screws. |
Jointing torque | 25 Nm |
| Angle of rotation | 70° | |
- Tighten the screws (3).
TIGHTENING TORQUES SPECIFICATION
| Cover, steering unit | ||
|---|---|---|
| Screw | Tightening torque | 3 Nm |
