51 48 Damping Layer, Hood
>>
51 48 001 Removing and installing/replacing insulation lining on engine hood/bonnet (530i 2017-2022, 530i xDrive 2017-2022, 530e PHEV 2018-2022, 530e xDrive PHEV 2018-2022, 540i 2017-2022, 540i xDrive 2017-2022, M550i xDrive 2018-2022)
>>
Remove the damping material on the bonnet
Remove the damping material on the bonnet

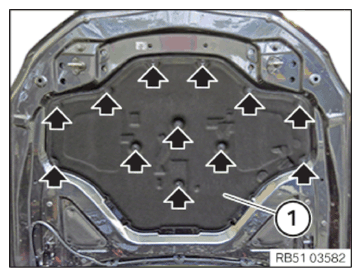

Release all clips (arrows) using the special tool
2 298 505.
Remove damping material (1).
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
