Remove tailgate trim panel

Preliminary works

• Remove the tailgate LIFT SWITCH .

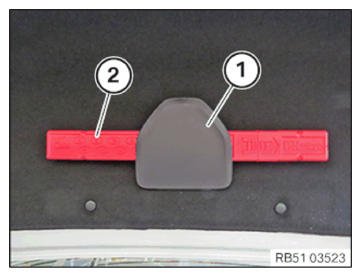

• Fold the cover (1) towards the bottom.
• Remove the warning triangle (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

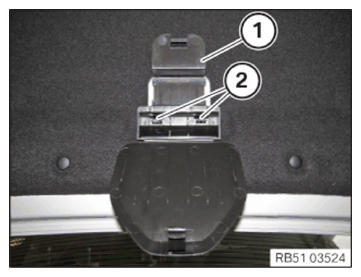

• Detach the holders (1) at the latch mechanisms (2) and remove them towards the bottom.

  Courtesy of BMW OF NORTH AMERICA, INC.

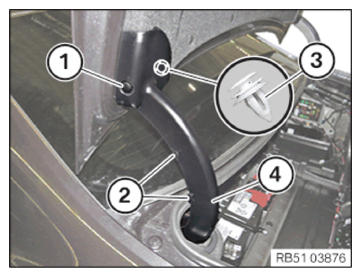

• Loosen expanding rivet (1).
• Loosen the latch mechanisms (2).
• Detach the clip (3) and remove the cover (4).

  Courtesy of BMW OF NORTH AMERICA, INC.

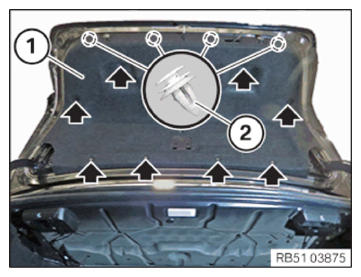

• Remove all expanding rivets (arrows).
• Detach the tailgate trim panel (1) from the clips (2) and remove.
