Installing the underbody panelling on the sides

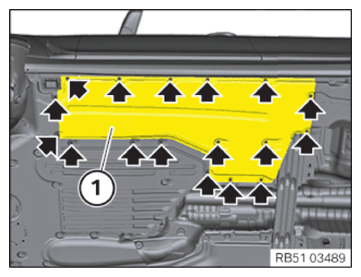

- Insert the underbody panelling (1).
- Tighten all bolts and nuts (arrows).
TIGHTENING TORQUES SPECIFICATION
| Underbody panelling |
| Screw |
Tightening torque |
2.6 Nm |
| Plastic nut |
Tightening torque |
2.6 Nm |
