Install the front section of the front wheel arch cover
NOTE:
To provide a better overview:

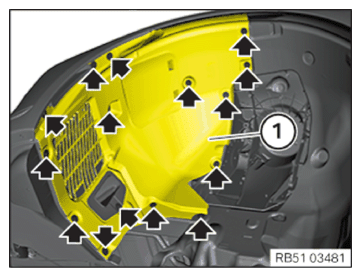

Schematic diagram with partially hidden components.
- Feed in front section (1) of front wheel arch cover.
- Tighten screws (arrows).
TIGHTENING TORQUES SPECIFICATION
| Wheel arch cover | ||
|---|---|---|
| Screw | Tightening torque | 3 Nm |
| Plastic nut | Tightening torque | 2.6 Nm |
Follow-up Work
- Mount the WHEEL .
