Install tension strut on spring strut dome
NOTE:
TECHNICAL INFORMATION
Driving without the strut brace/front-end strut or tension strut is not permitted.
Driving without the strut brace/front-end strut or tension strut is not permitted.

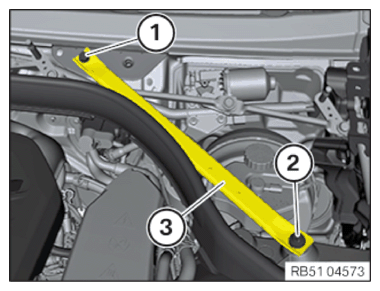

- Version A:
- Install the tension strut (3) on the spring strut dome.
- Tighten the screws (1).
TIGHTENING TORQUES SPECIFICATION
| Tension strut on firewall | ||
|---|---|---|
| M10x25 screw | Tightening torque | 56 Nm |
- Replace screws (2).
Parts: Screws
- Tighten the screws (2).
TIGHTENING TORQUES SPECIFICATION
| Tension strut to spring strut dome | ||
|---|---|---|
| Screw Replace screws. |
Jointing torque | 56 Nm |
| Angle of rotation | 90° | |

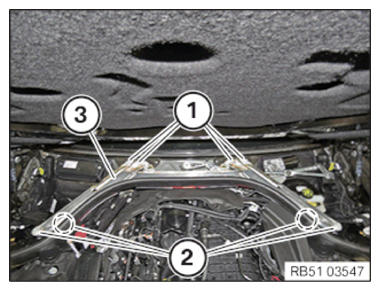

- Version B:
- Install tension strut on spring strut dome (3).
- Tighten down screw (1).
TIGHTENING TORQUES SPECIFICATION
| Tension strut on firewall | ||
|---|---|---|
| M10x25 screw | Tightening torque | 56 Nm |
- Replace the screw (2).
Parts: Screw
- Tighten down screw (2).
TIGHTENING TORQUES SPECIFICATION
| Tension strut to spring strut dome | ||
|---|---|---|
| Screw Replace screws. |
Jointing torque | 56 Nm |
| Angle of rotation | 90° | |
Follow-up Work
