51 76 031 Removing and installing/replacing the bonnet sealing at the front (530i 2017-2022, 530i xDrive 2017-2022, 530e PHEV 2018-2022, 530e xDrive PHEV 2018-2022, 540i 2017-2022, 540i xDrive 2017-2022, M550i xDrive 2018-2022)
>>
Install the seal for the front bonnet
Install the seal for the front bonnet

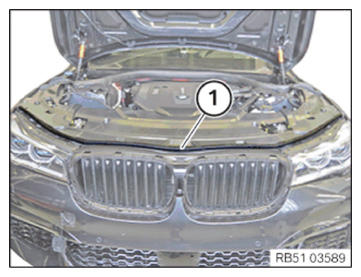

Press the front bonnet seal (1) downward into the guide.
Ensure that seal for the front bonnet is correctly seated.
