Installing seal fixture for bonnet

NOTE: Description is for left component only.
Procedure on the right side is identical.

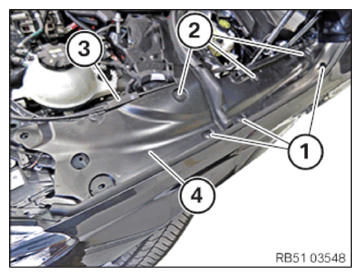

Feed in the mounting (4) of the bonnet seal.
Make sure that the mounting for the bonnet seal (4) is correctly fitted on all adjoining components.
Only on right side: Clip in cable (3).
Clip in clips (2).
Mount the expanding rivets (1).

G14196448

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up Work

Install the washer fluid reservoir LID .
Install the rear right engine compartment COVER .
Install the top right engine compartment COVER .
