Remove the cover in the engine compartment on top

NOTE: Description is for left component only. Procedure on the right side is identical.

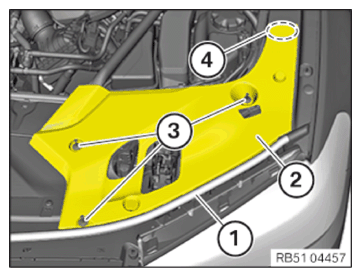

• Detach the gasket (1) in the area of the cover (2).
• Loosen the expanding rivet (3).
• Guide out and remove the cover (2) in the area (4).
