52 14 Front Seat, Normal, Electrical
>>
52 14 040 Removing and installing/replacing outer cover on left or right front seat (530i 2017-2022, 530i xDrive 2017-2022, 530e PHEV 2018-2022, 530e xDrive PHEV 2018-2022, 540i 2017-2022, 540i xDrive 2017-2022, M550i xDrive 2018-2022)
>>
Install outer cover on front seat
Install outer cover on front seat

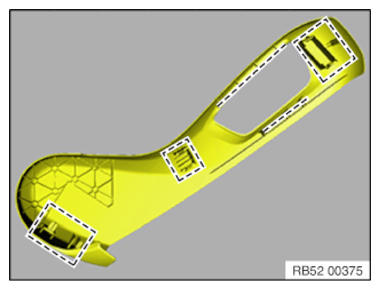

Check the guides and latch mechanisms in the highlighted area for damage.
Courtesy of BMW OF NORTH AMERICA, INC.

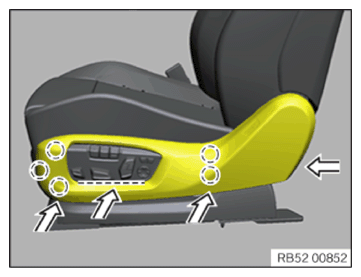

Clip in the covers from the rear to the front in the direction of the arrow.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
