Install the backrest cover for the front seat

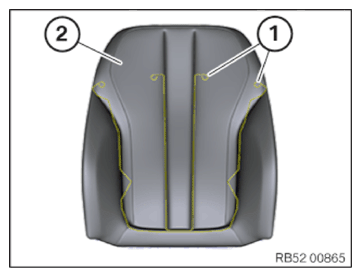

• Place the backrest cover (2) onto the upholstery.
• Secure all trim wires (1) with clamps.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Replace the clamps (2).

  Parts:  Clamps

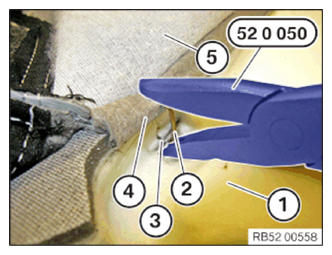

• Insert the new clamp (2) with the special tool 0 492 668 (52 0 050)  .
• Clasp the trim wire (3) of the upholstery (1) and the trim wire (4) of the cover with the clamp (2) and bend the clamp (2) to close it.

  Courtesy of BMW OF NORTH AMERICA, INC.

  1	Upholstery
  2	Clamp
  3	Trim wire in upholstery
  4	Trim wire in cover
  5	Seat cover

Follow-up Work

• Install the front seat cushion backrest COVER .
• In equipment specification with rear compartment monitor: cut out backrest COVER
• Install front head restraint both GUIDE SLEEVES
• Install front seat HEAD RESTRAINT .
• Install front seat side AIRBAG .
• Install front seat inner COVER .
• Install front seat outer COVER .
• Mount the front seat backrest REAR PANEL .
• Install front SEAT .
• Install the rear MONITOR .
