REPLACING FRONT LEFT OR RIGHT SIDE WALL HOLDER (530i 2017-2022, 530i xDrive 2017-2022, 530e PHEV 2018-2022, 530e xDrive PHEV 2018-2022, 540i 2017-2022, 540i xDrive 2017-2022, M550i xDrive 2018-2022)

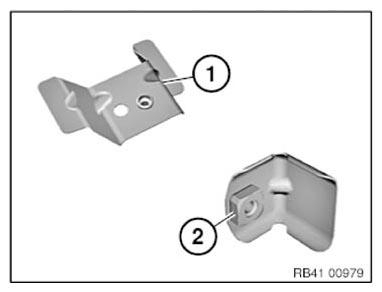

Following new body parts are required (refer to Electronic Parts Catalog):

• (1) Holder, side wall, front (variant 1)
• (2) Holder, side wall, front (variant 2)

Following CONSUMABLES are required:

Courtesy of BMW OF NORTH AMERICA, INC.

Material	Quantity
Adhesive K5a	1
Blind rivets N3	2
Cleaning agent R1	1

Removal of side wall holder (variant 1):

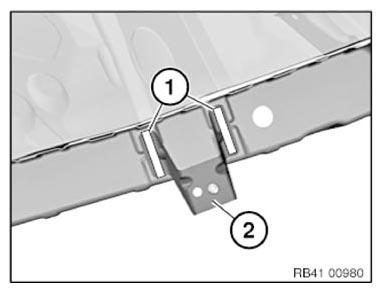

Release welded connections in areas (1) and remove holder (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation of new part:

Adjust new part in conjunction with side panel in front to fit.

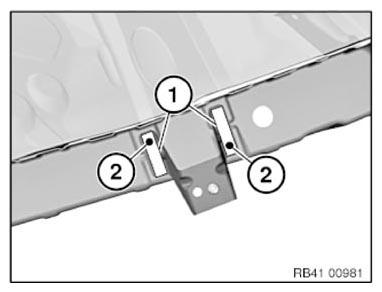

In area of bonding surfaces (1), set 2 4.2 mm dia. bores (2) for blind rivets N3.

Remove new part and deburr holes.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation of side wall holder:

Clean all bonding surfaces with cleaning agent R1.

Apply adhesive to bonding surfaces.

Install new part and rivet with blind rivets.

Removal of side wall holder (variant 2):

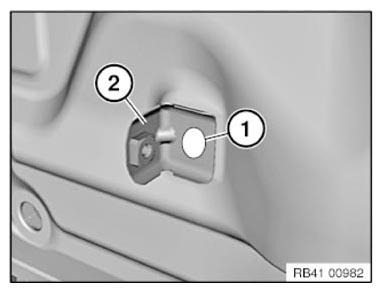

Release welded connection in area (1) and remove holder (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation of new part:

Fit in new part.

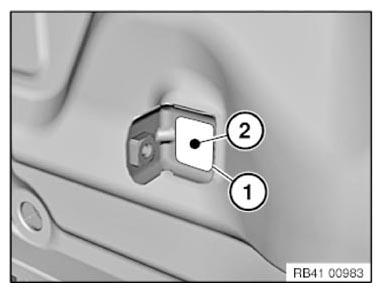

In area of adhesive surface (1), drill a 4.2 mm dia. bore (2) for blind rivet N3.

Remove new part and deburr holes.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation of side wall holder:

Clean all bonding surfaces with cleaning agent R1.

Apply adhesive to bonding surface.

Install new part and rivet with blind rivet.
