Install Wheel Arch

Further information is available.

• Pre-clean bonding surfaces on vehicle and on new part with cleaning agent R2.
  CONSUMABLE - CLEANING AGENT DESCRIPTION



  Cleaning agent R2

  500 ml

  83190417324

• Clean bonding surfaces on vehicle and on new part with cleaning agent R1.
  CONSUMABLE - CLEANING AGENT DESCRIPTION



  Cleaning agent R1

  100 ml, 83192211217 Bottle

• Apply adhesive K1 to the bonding surfaces.
  ADHESIVE DESCRIPTION



  Body adhesive K1

  195 ml

  83190413015

• Install the new parts with an alignment bracket or a universal mount.
• Rivet new parts in the areas (1) and (2) with blind rivets N2.
  CONSUMABLE - BLIND RIVET DESCRIPTION



  Blind Rivet N2  Ø 6.5 mm; clamping area 4.8-6.8 mm

  83190301419

  Courtesy of BMW OF NORTH AMERICA, INC.

• Rivet new parts in the areas (1) with blind rivets N1.
  CONSUMABLE - BLIND RIVET DESCRIPTION



  Blind rivet N1  Ø 6.5 mm; clamping area 2.8-4.8 mm

  83190301414

  Courtesy of BMW OF NORTH AMERICA, INC.

• Rivet the new parts in the areas (1) with blind rivets N1.
  CONSUMABLE - BLIND RIVET DESCRIPTION



  Blind rivet N1  Ø 6.5 mm; clamping area 2.8-4.8 mm

  83190301414

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: TECHNICAL INFORMATION
  For additional information see: INSTALLING CAVITY SEALING (NOT EXPANDED) (530I 2017-2022, 530I XDRIVE 2017-2022, 530E PHEV 2018-2022, 530E XDRIVE PHEV 2018-2022, 540I 2017-2022, 540I XDRIVE 2017-2022, M550I XDRIVE 2018-2022) .
• Apply sealant D1 to the new cavity sealing (1).
  CONSUMABLE - SEALANT DESCRIPTION



  Sealant D1 (seam sealing)

  310 ml

  83422409985

  Courtesy of BMW OF NORTH AMERICA, INC.

• Insert the cavity sealing (1) into the carrier support for the new part.
• Apply sealant D1 to cavity sealing (1).
• Install the carrier support for the new part.
• Rivet the new parts in the areas (1) and (2) with blind rivets N1.
  CONSUMABLE - BLIND RIVET DESCRIPTION



  Blind rivet N1  Ø 6.5 mm; clamping area 2.8-4.8 mm

  83190301414

• Rivet the new parts in the areas (3) with blind rivets N3.
  CONSUMABLE - BLIND RIVET DESCRIPTION



  Blind rivet N3  Ø 4 mm; clamping area 1-3 mm

  83190301421

  Courtesy of BMW OF NORTH AMERICA, INC.

• In the area (4), use a bind rivet N6.
  CONSUMABLE - BLIND RIVET DESCRIPTION



  Blind rivet N6  Ø 4 mm; clamping area 3-5 mm

  83192158655

• Weld the new parts in areas (1) according to the new part preparation process.

  Avoid excessive application of heat to adhesive areas.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Weld the new part in areas (1) according to the new part preparation process.

  Avoid excessive application of heat to adhesive areas.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Rivet new parts in the areas (1) and (2) with blind rivets N1.
  CONSUMABLE - BLIND RIVET DESCRIPTION



  Blind rivet N1  Ø 6.5 mm; clamping area 2.8-4.8 mm

  83190301414

  Courtesy of BMW OF NORTH AMERICA, INC.

• Rivet new parts in the areas (1) with blind rivets N1.
  CONSUMABLE - BLIND RIVET DESCRIPTION



  Blind rivet N1  Ø 6.5 mm; clamping area 2.8-4.8 mm

  83190301414

  Courtesy of BMW OF NORTH AMERICA, INC.

  Installing the EMC screw

• Drill the hole with a diameter of 4.2 mm after the adhesive completely hardens.
• Screw in the EMC screw.
• Seal the EMC screw with the sealant.
  CONSUMABLE - SEALANT DESCRIPTION



  Sealant D1 (seam sealing)

  310ml

  83422409985

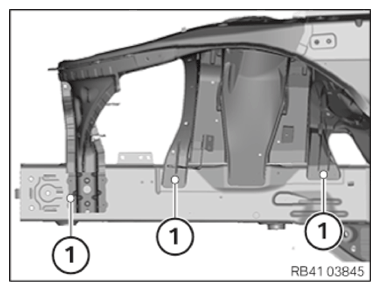

• After the adhesive has hardened, install 3 EMC screws in the areas (1) shown.
  CONSUMABLE - SCREW DESCRIPTION



  screw  EMC screw, SF Plus, M5x15

  83190301639

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to CUT THE THREADS .
• Refer to ACTIVATE HIGH-VOLTAGE SYSTEM .
• Refer to INSTALL FLAP IN RIGHT LUGGAGE COMPARTMENT TRIM PANEL .
