Installing The Outer Wheel Arch Section With The Reinforcement

Further information is available.

Courtesy of BMW OF NORTH AMERICA, INC.

• Pre-clean the bonding surfaces (1) on the new part and on the vehicle with cleaning agent R2.
  CONSUMABLE - CLEANING AGENT DESCRIPTION



  Cleaning agent R2

  500 ml

  83190417324

• (1) Clean bonding surfaces on vehicle and on new part with cleaning agent R1.
  CONSUMABLE - CLEANING AGENT DESCRIPTION



  Cleaning agent R1

  100 ml, Bottle

  83192211217

• Apply adhesive K1 to the bonding surfaces (1).
  ADHESIVE DESCRIPTION



  Body adhesive K1

  195 ml

  83190413015

• Install new part outer wheel arch section in the areas (1) using blind rivet N1.
  CONSUMABLE - BLIND RIVET DESCRIPTION



  Blind rivet N1	83190301414
  ø 6.5 mm; clamping area 2.8-4.8 mm

  NOTE: TECHNICAL INFORMATION
  Avoid applying excessive heat to neighboring adhesive areas.
• Weld the new part in areas (2).

  Avoid excessive heat input at the beading adhesive areas (1) and (3). Cool the bonded rivet areas with compressed air as needed.

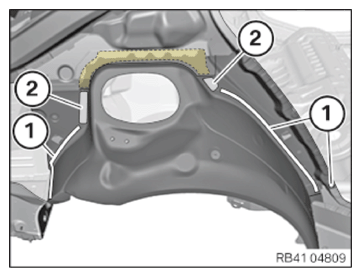

• Weld new part in the areas (1).

  Avoid excessive heat input on the adjacent adhesive areas (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

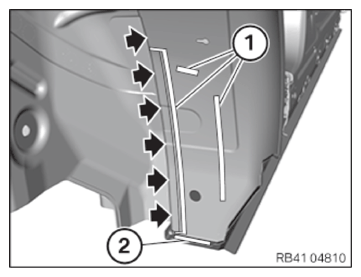

• Weld the new part in the areas (1) and (2). In this process, avoid excessively high heat input in the adjacent adhesive area (arrows).

  Courtesy of BMW OF NORTH AMERICA, INC.

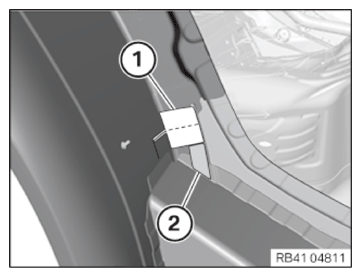

• Weld the new part and the reinforcement plate in the area (1). Avoid applying too much heat to the adjacent adhesive area (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Install the new part luggage strap and weld it in the areas (1). In this process, avoid excessively high heat input at the adjacent bonded rivet areas (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Weld the new parts C-pillar reinforcement (1) and the C-pillar insert (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Install the new part C-pillar reinforcement and weld it in the areas (3) to (1). Avoid applying too much heat to the adjacent adhesive area (4).

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: TECHNICAL INFORMATION
  For additional information see: INSTALLING CAVITY SEALING (NOT EXPANDED) (530I 2017-2022, 530I XDRIVE 2017-2022, 530E PHEV 2018-2022, 530E XDRIVE PHEV 2018-2022, 540I 2017-2022, 540I XDRIVE 2017-2022, M550I XDRIVE 2018-2022) .
• Apply sealant to the cavity sealing (1) and install the cavity sealing (1).

  Courtesy of BMW OF NORTH AMERICA, INC.
