Install the backrest cover for the front seat

• Place the backrest cover (2)  on the cushion.
• Secure all trim wires (1)  with clamps.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Replace the clamps (2)  .

  Parts:  Clamps

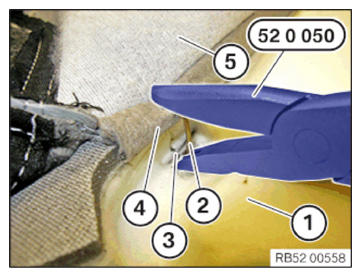

• Insert the new clamp (2) with the special tool 0 492 668 (52 0050)
• Fasten the trim wire (3)  of the facing (1)  and the trim wire (4)  of the cover using the clamp (2)  and bend the clamp (2)  to close it.

  1	Cushion
  2	Clamp
  3	Trim wire in upholstery
  4	Trim wire in cover
  5	Seat cover

• Slightly fold backrest cover (1)  to one side.
• Insert the holder (2)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Clip in the trim (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up Work

• Install the front seat cushion backrest COVER .
• In equipment specification with rear compartment monitor: cut out backrest COVER
• Install front seat side AIRBAG .
• Install the front seat head restraint height ADJUSTMENT DRIVE .
• Install front seat crash-active head RESTRAINT .
• Install the front seat rear panel bottom rear PANEL .
• Install front seat rear panel top rear PANEL .
• Install front seat inner COVER
• Install front seat outer COVER .
• Install front SEAT .
• Install the REAR MONITOR .
