Body Equipment - Repair (3 Of 3) (G30)
>>
51 47 Floor-Trunk-Engine Compartment-Trim Panel
>>
51 47 101 Removing and installing/replacing luggage compartment floor covering (530e PHEV 2018-2022, 530e xDrive PHEV 2018-2022)
>>
Remove luggage compartment floor covering
Remove luggage compartment floor covering

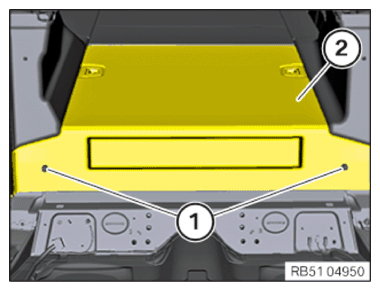

Remove the expanding rivets (1) from the luggage compartment floor covering (2).
Courtesy of BMW OF NORTH AMERICA, INC.

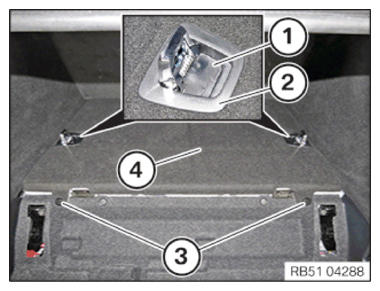

Lever the cover (1) out and unscrew the bolt below it.
Remove the lashing eye (2).
Remove the expanding rivet (3).
Remove the luggage compartment floor covering (4).
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
