Install the rear luggage compartment floor covering

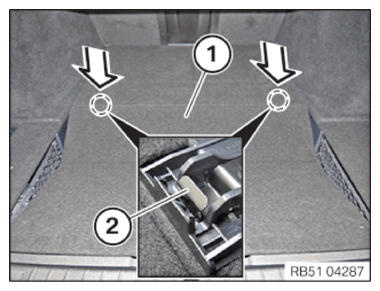

• Clip the luggage compartment floor covering (1) into the clamps (2) from the top in the direction of the arrow.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Open the luggage compartment floor covering.

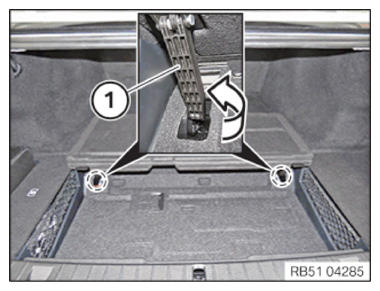

• Press the lever (1) on the left and right inward in the direction of the arrow and attach to the corresponding guide.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Install rear SEAT BACKREST
• Install the rear SEAT BENCH .
• Install the left and right backrest SIDE SECTION .
