52 24 Rear Seat, Normal
>>
52 24 408 Replacing backrest cover for rear seat (530i 2017-2022, 530i xDrive 2017-2022, 530e PHEV 2018-2022, 530e xDrive PHEV 2018-2022, 540i 2017-2022, 540i xDrive 2017-2022, M550i xDrive 2018-2022)
>>
Remove the backrest cover from the rear seat backrest
Remove the backrest cover from the rear seat backrest

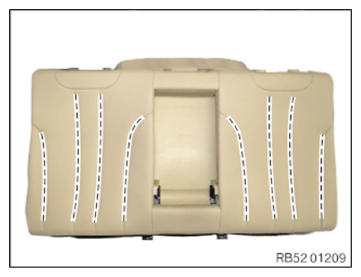

Loosen all clamps on the trim wires.
Remove the backrest cover from the upholstery.
Completely remove the clamps from the backrest cover and the cushion.
