Replacement with Automatic Soft Close system: Remounting the Automatic Soft Close drive

Remove Automatic Soft Close drive

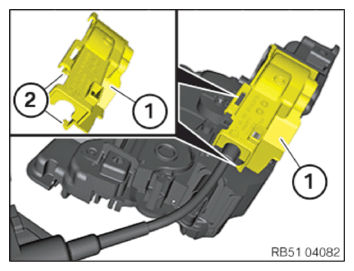

• Loosen cover (1) on locks (2).
• Remove the cover (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

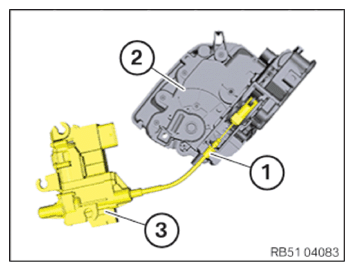

• Detach Bowden cable (1) from door lock (2).
• Remove the Automatic Soft Close drive (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Installing the Automatic Soft Close drive

• Attach the Bowden cable (1) of the Automatic Soft Close drive (3) on the door lock (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Install cover (1) and engage the latch mechanisms (2).

Courtesy of BMW OF NORTH AMERICA, INC.
