51 23 265 Removing and installing/replacing left or right gas pressure spring for engine compartment lid (530i 2017-2022, 530i xDrive 2017-2022, 530e PHEV 2018-2022, 530e xDrive PHEV 2018-2022, 540i 2017-2022, 540i xDrive 2017-2022, M550i xDrive 2018-2022)
>>
Installing the gas pressure spring for engine compartment lid
Installing the gas pressure spring for engine compartment lid

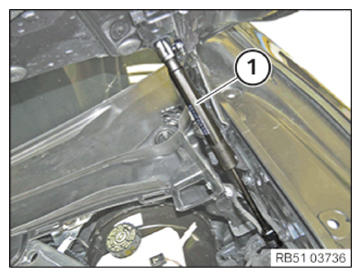

Place the gas pressure spring for bonnet (1) with the ball sockets on the ball pins and engage it forcefully.
Courtesy of BMW OF NORTH AMERICA, INC.
Follow-up Work
Install the rear left engine compartment
COVER
.
Install the rear right engine compartment
COVER
.
Courtesy of BMW OF NORTH AMERICA, INC.
