52 26 Rear Seat, Through-Loading
>>
52 26 030 Removing and installing/replacing center armrest (530i 2017-2022, 530i xDrive 2017-2022, 530e PHEV 2018-2022, 530e xDrive PHEV 2018-2022, 540i 2017-2022, 540i xDrive 2017-2022, M550i xDrive 2018-2022)
>>
Install the rear center armrest
Install the rear center armrest
Position the center armrest.

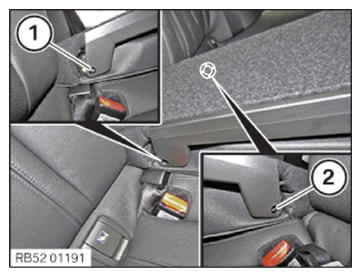

Tighten down screws (1) and (2).
TIGHTENING TORQUES SPECIFICATION
Rear center armrest to backrest frame
Screw
Tightening torque
8 Nm
Courtesy of BMW OF NORTH AMERICA, INC.
