Install the backrest frame for the rear seat backrest on the left

Install the backrest frame for the rear seat backrest

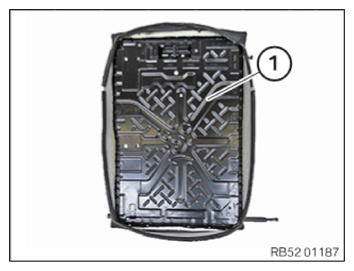

• Insert and position the backrest frame (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

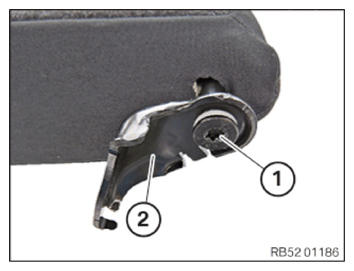

• Position the outer mount (2).
• Tighten down screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up Work

• Install the rear head restraint GUIDE SLEEVE
• Install the left rear seat backrest REAR PANEL .
• Install the rear side HEAD RESTRAINT .
• Install the left rear seat BACKREST .
• Install left side section BACKREST .
• Install the rear SEAT BENCH .
