52 26 Rear Seat, Through-Loading
>>
52 26 202 Removing and installing/replacing rear panel on central rear seat backrest (530i 2017-2022, 530i xDrive 2017-2022, 530e PHEV 2018-2022, 530e xDrive PHEV 2018-2022, 540i 2017-2022, 540i xDrive 2017-2022, M550i xDrive 2018-2022)
>>
Remove rear panel on the center rear seat backrest
Remove rear panel on the center rear seat backrest

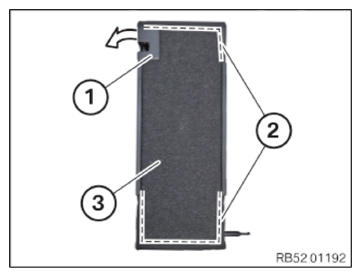

Unclip the trim (1).
Unclip the welt of the backrest cover with the special tool
0 496 569 (00 9 325)
along the broken line (2).
Remove the rear panel (3).
