52 26 Rear Seat, Through-Loading
>>
52 26 292 Remove and install/replace ISOFIX trim (530i 2017-2022, 530i xDrive 2017-2022, 530e PHEV 2018-2022, 530e xDrive PHEV 2018-2022, 540i 2017-2022, 540i xDrive 2017-2022, M550i xDrive 2018-2022)
>>
Removing the ISOFIX cover cap
Removing the ISOFIX cover cap
Preliminary works
Remove rear
SEAT BENCH
.

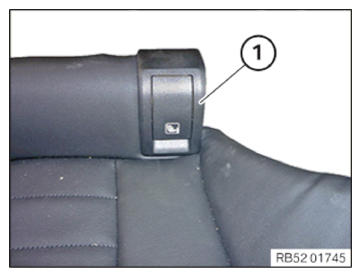

Unclip the ISOFIX cover cap (1).
Courtesy of BMW OF NORTH AMERICA, INC.
