Install the control for the rear seat backrest

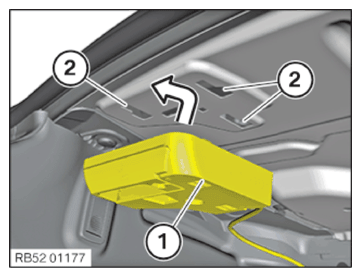

• Insert the control (1) into the openings (2) and slide it back.

  Courtesy of BMW OF NORTH AMERICA, INC.

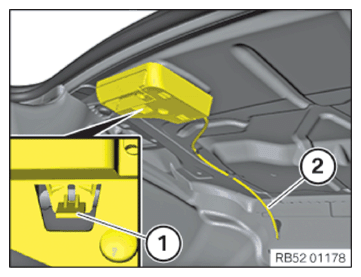

• Make sure the latch mechanism (1) is correctly positioned.
• Insert the Bowden cable (2) into the body.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up Work

• Install the BACKREST LOCK
