52 26 Rear Seat, Through-Loading
>>
52 26 388 Removing and installing/replacing rear middle head restraint (530i 2017-2022, 530i xDrive 2017-2022, 530e PHEV 2018-2022, 530e xDrive PHEV 2018-2022, 540i 2017-2022, 540i xDrive 2017-2022, M550i xDrive 2018-2022)
>>
Removing the rear middle head restraint
Removing the rear middle head restraint

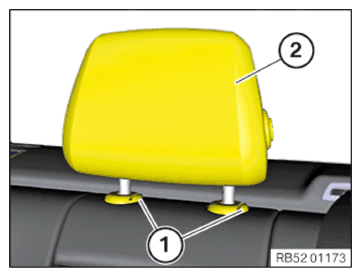

Press the locks (1) and remove the head restraint (2) towards the top.
