Remove the rear head restraint on the side

Prerequisite

• Rear seat backrest is folded down.

Removing the head restraint

• Version A:

  Press lock (1) and remove head restraint in direction of arrow.

• Version B:

  Unclip the cover (2).

  Release clamp (3) and remove head restraint in direction of arrow.

• Version C:

  Unclip the cover (2).

  Press in lock (4) with a suitable tool and remove head restraint in direction of arrow.

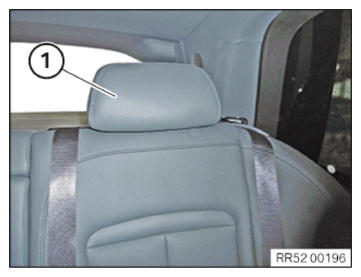

• Use the appropriate variant and remove the head restraint (1) upwards.
