Sunroof - Repair (G30)
>>
54 12 Slide/Tilt Sunroof
>>
54 12 015 Replacing left or right gaiter for glass slide/tilt sunroof (530i 2017-2022, 530i xDrive 2017-2022, 530e PHEV 2018-2022, 530e xDrive PHEV 2018-2022, 540i 2017-2022, 540i xDrive 2017-2022, M550i xDrive 2018-2022)
>>
Remove the gaiter for the glass slide/tilt sunroof
Remove the gaiter for the glass slide/tilt sunroof
NOTE:
Description is for right component only.
The procedure on the left side is identical.
Move the glass slide/tilt sunroof panel to the vent position.

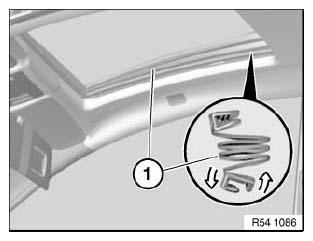

Carefully pull off the gaiter (1) from the top guide.
Carefully twist out the gaiter (1) from the bottom guide.
