Sunroof - Repair (G30)
>>
54 12 Slide/Tilt Sunroof
>>
54 12 117 Replacing seal for glass slide/tilt roof panel (530i 2017-2022, 530i xDrive 2017-2022, 530e PHEV 2018-2022, 530e xDrive PHEV 2018-2022, 540i 2017-2022, 540i xDrive 2017-2022, M550i xDrive 2018-2022)
>>
Remove the gasket for the glass slide/tilt sunroof panel
Remove the gasket for the glass slide/tilt sunroof panel

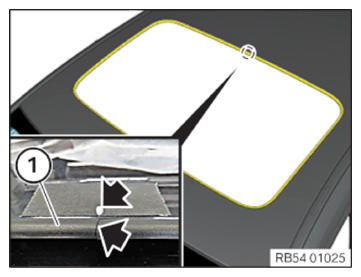

Apply adhesive tape in the area of the sealing joint on the roof.
Mark the sealing joint on the adhesive tape.
Peel the gasket (1) on the sealing joint off beginning from the body.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
