Remove sliding roofliner

Preliminary work

• Remove the glass slide/tilt sunroof GAITER .
• Remove glass slide/tilt SUNROOF PANEL .

Prerequisite

Sliding headliner is closed.

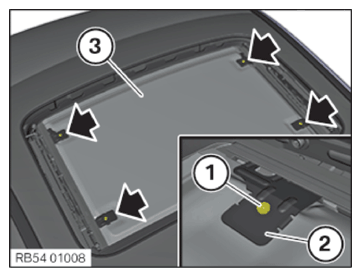

• Loosen screws (1).
• Remove the sliders (arrows) (2) from the glass slide/tilt sunroof frame.
• Remove the sliding roofliner (3) towards the top.

  Courtesy of BMW OF NORTH AMERICA, INC.
