Remove the carriage for the water channel on the left and right
Preliminary work
- Remove the glass slide/tilt SUNROOF GAITER .
- Remove glass slide/tilt SUNROOF PANEL .
- Remove the glass slide/tilt sunroof WATER CHANNEL .

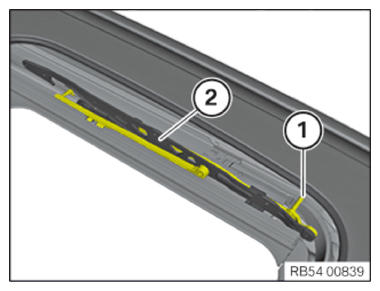

- Move the gate (1) back as shown until the limit position (2) is exposed.
NOTE:
TECHNICAL INFORMATION
Make sure that both carriages for the water channel are pushed back as well. If necessary, secure carriages for water channel with a cord so that they can be pulled back out again later on.
Make sure that both carriages for the water channel are pushed back as well. If necessary, secure carriages for water channel with a cord so that they can be pulled back out again later on.

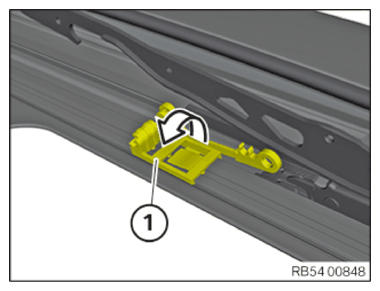

- Lever out the limit position (2).

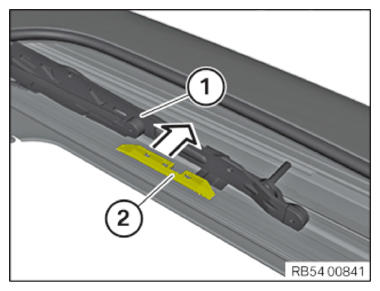

- Move the gate (1) up to the recess (2).
- Hold down the lever (1).
- Move the gate (2) until it is positioned vent position.

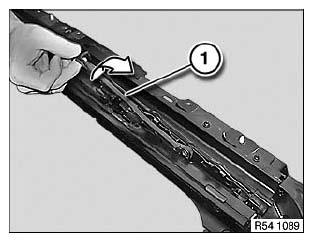

- Lever out the control lever (1) from the guide rail and fold it forwards.

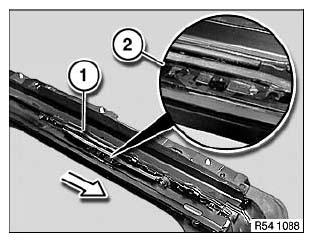

- Reach between the slide/tilt sunroof unit and roof and pull out carriage (1) up to the recess.
- Remove the carnage (1) in the direction of the arrow.
