Remove the wind deflector holder

Prerequisite

• Glass slide/tilt sunroof panel is fully open.

Preliminary work

• Remove WIND DEFLECTOR .

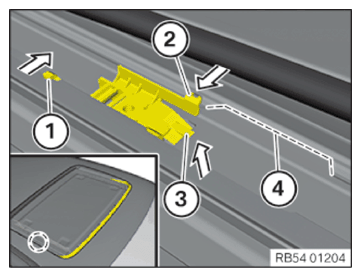

• Disengage the latch mechanisms in sequence (1), (2) and (3) each in the direction of the arrow.
• Slide the holder back to the recess (4) and out of the frame.

  Courtesy of BMW OF NORTH AMERICA, INC.
