Check the seat functions of the front seat

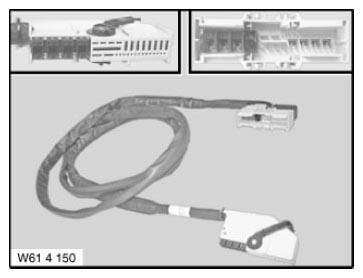

• Connect special tool 0 496 519 (61 4 150)  with the wiring harness of the vehicle and the removed front seat.

  Courtesy of BMW OF NORTH AMERICA, INC.

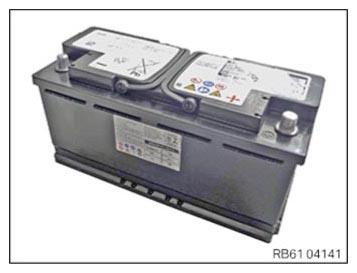

Connecting all battery earth leads

Additional information is available.

• See. ADDITIONAL INFORMATION

  Courtesy of BMW OF NORTH AMERICA, INC.

• Check the seat functions using the operating unit on the front seat.

Disconnecting all battery earth leads

Additional information is available.

• See ADDITIONAL INFORMATION .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Disconnect special tool 0 496 519 (61 4 150)  from the wiring harness of the vehicle and the removed front seat.

Follow-up Work

• Install front seat outer COVER .
• Install front SEAT .
• INITIALIZE the electrical seat adjustment drives.
