Removing the backrest upper section adjustment motor

Preliminary works

• Remove the top rear panel on the front seat REAR PANEL .
• Remove the rear panel at the bottom of the front seat REAR PANEL .

• Loosen the seat cover (1) in the indicated area.

  Courtesy of BMW OF NORTH AMERICA, INC.

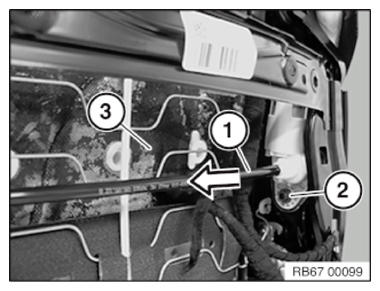

• Unlock the shaft (1) and pull it from the fixture in the direction of the arrow.
• Loosen nut (2).
• Fold the seat cover (3) forwards.

  Courtesy of BMW OF NORTH AMERICA, INC.

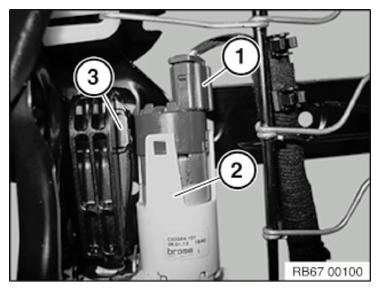

• Unlock plug connection (1) and disconnect.
• Pull out clamp (3).
• Remove the backrest upper section adjustment motor (2).

  Courtesy of BMW OF NORTH AMERICA, INC.
