When replacing the drive for backrest upper section adjustment: Remount transmission for backrest upper section adjustment

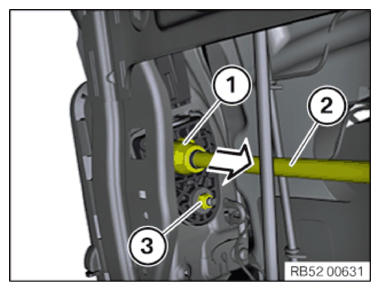

• Unclip the cover (1) towards the inside.
• Pull the shaft (2) in direction of arrow out of the transmission.
• Release the nut (3) and remove washer.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Pull out the clamp (1).
• Remove the transmission for the backrest upper section adjustment (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

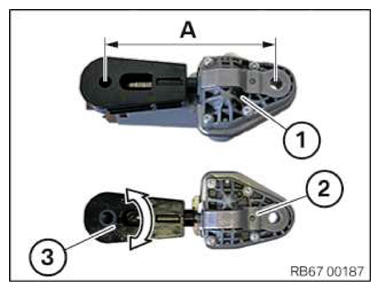

• Turn spindle (3) until dimension (A) of the new drive for backrest upper section adjustment (1) has been adjusted on the transmission for backrest upper section adjustment (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Insert the transmission for the backrest upper section adjustment (1).
• Secure the bolt (2) with the clamp (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Insert nut (3) with the washer and tighten.

TIGHTENING TORQUES SPECIFICATION

Drive/transmission for backrest upper section adjustment to backrest frame
Tightening torque
Nut M5	5.5 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

• Insert the shaft (2) in direction of arrow into the transmission for backrest upper section adjustment.
• Clip in the cover (1).
