Sunroof - Repair (G30)
>>
54 12 Slide/Tilt Sunroof
>>
54 12 540 Removing and installing/replacing the screen for glass slide/tilt sunroof (Glass slide/tilt sunroof frame removed) (530i 2017-2022, 530i xDrive 2017-2022, 530e PHEV 2018-2022, 530e xDrive PHEV 2018-2022, 540i 2017-2022, 540i xDrive 2017-2022, M550i xDrive 2018-2022)
>>
Remove the screen for the glass slide/tilt sunroof
Remove the screen for the glass slide/tilt sunroof
NOTE:
Description is for left component only. Procedure on the right side is identical.

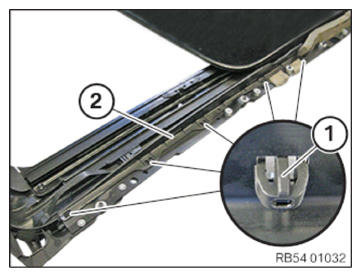

Release the latch mechanisms (1) and remove the screen (2).
Courtesy of BMW OF NORTH AMERICA, INC.
