Install sliding roofliner

Prerequisite

Sliding headliner is closed.

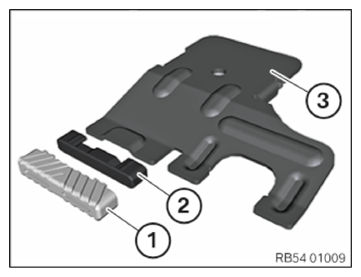

• If required, remove the slider (1) and the adapter (2) from the glass slide/tilt sunroof frame and attach it to the bracket (3).
• Grease the slider (1).

Courtesy of BMW OF NORTH AMERICA, INC.

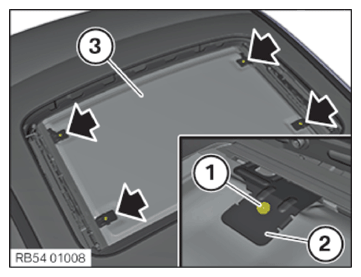

• Install sliding roofliner (3) from top.
• Insert the slider (2) into the glass slide/tilt sunroof frame.
• Tighten the screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

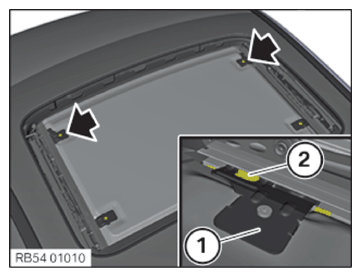

• Check the position of the front holders (1) on the drivers (2).

  Position the holder (1) correctly as needed.

  Courtesy of BMW OF NORTH AMERICA, INC.
