PROCUT Brake Lathe Upgrade (SI B34 04 20)

PROCUT BRAKE LATHE UPGRADE

SERVICE CAMPAIGN BULLETIN

SERVICE INFORMATION

This Service Information Bulletin (Revision 1) replaces SI B34 04 20 dated May 2020  .

What's New  (Specific text highlighted):

• Correction

SITUATION

On certain newer BMW vehicles (e.g., G12 M760i, G14, G15), the technician cannot perform brake rotor resurfacing using the ProCut PFM9.2 or X9 brake lathe. The lathe gearbox housing contacts the large-diameter rotor (aka brake disc), preventing proper setup.

CAUSE

New models introduced with brake rotors larger than 374 mm (approx. 14.75") require new equipment for service.

CORRECTION

Upgraded gearbox kit installed by ProCut.

The gearbox upgrade kit is required to be installed and available for use in your workshop by January 1, 2021

On and after January 1, 2021  , all BMW centers are required to follow all corresponding service information bulletins that relate to this topic.

Any rotor replacements submitted for reimbursement through a claim submission to BMW will be requested to be returned for review by the Warranty Parts Return Center (WPRC) and subject to debit if they are found to be suitable for machining.

PROCEDURE

Contact your local ProCut representative, requesting they perform Tech Bulletin TB3, BMW Large rotor upgrade package. Refer to the attached ProCut Tech Bulletin TB3.

PARTS INFORMATION

For efficient and quality rotor resurfacing, additional lathe hardware upgrades are recommended, as per attached ProCut Tech Bulletin TB3.

WARRANTY INFORMATION

ProCut Brake Lathe Equipment upgrades, and maintenance are not covered under Warranty. The price list for various levels of upgrade can be found in the attached "BMW package - Order Form".

It is highly recommended and advised that BMW centers will take advantage of this introductory upgrade offer, to keep the already purchased equipment up to date and relevant for new BMW products. Also, the gearbox update will be necessary for soon-to-be released resurfacing procedure for cross-drilled rotors on M-Sport vehicles.

QUESTIONS REGARDING THIS BULLETIN

Technical inquiries	Submit feedback at the top of this bulletin
Warranty inquiries	Submit an IDS ticket to the Warranty Department or use the chat available in the Warranty Documentation Portal
Parts inquiries	Submit an IDS ticket to the Parts Department

Supporting Materials

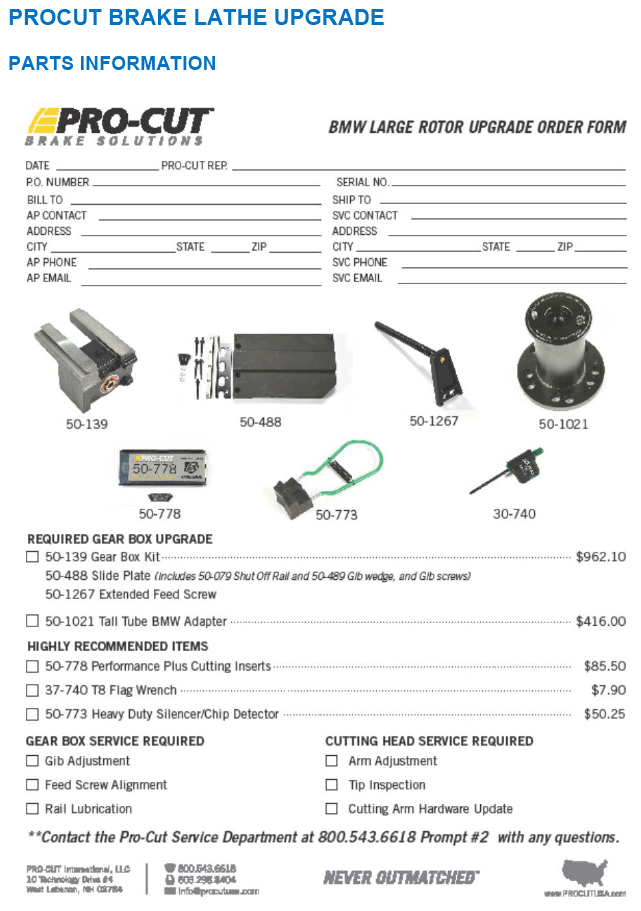

picture as pdf B34 04 20 BMW package order form.pdf

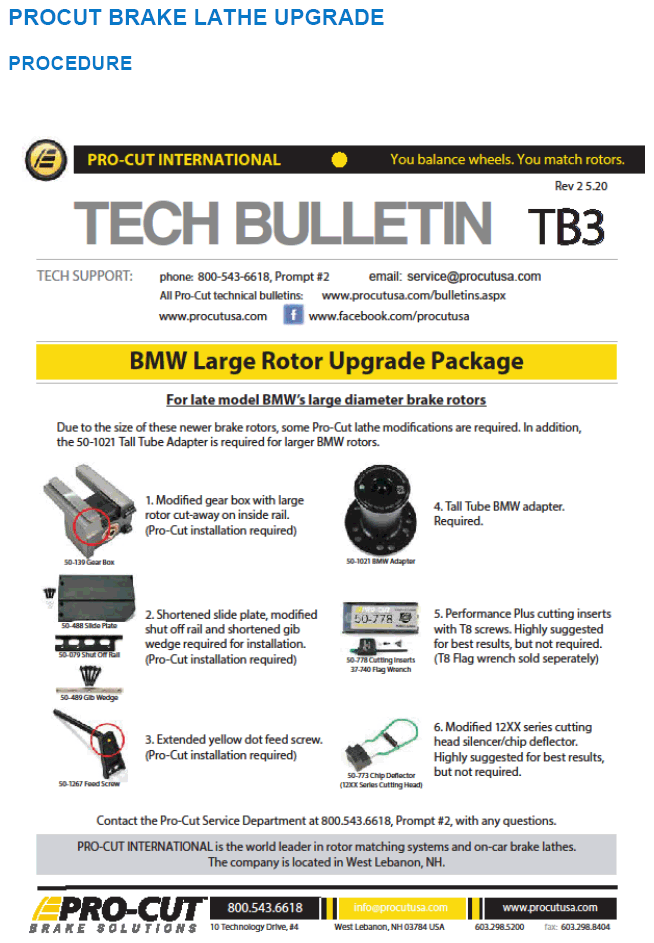

picture as pdf B34 04 20 ProCut Tech Bulletin TB3.pdf
