Check Control (Cc) Message: "Coolant Level Too Low!" Is Displayed (SI B17 02 17)
Publication date: 2017-03-01Reference number: SI B17 02 17
CHECK CONTROL (CC) MESSAGE: "COOLANT LEVEL TOO LOW!" IS DISPLAYED
TECHNICAL SERVICE BULLETIN
| BMW: | G30 (5 Series Sedan); G12 (7 Series Sedan); With the B46, B58 and XB1H (PHEV) engines up to February 2017 |
| GROUP: | Cooling Systems |
SITUATION
CC message: "Coolant level too low!" appears in the display.
CAUSE
The cooling system wasn't efficiently bled during the factory fill.
CORRECTION
Check the cooling system for leaks and repair and refill as necessary.
PROCEDURE
- Follow ISTA Repair Instruction RA 17 00 009 Check coolant circuit for water tightness
(attached).
Were any coolant leaks discovered in the engine compartment?
YES - repair the leaks. Go to step 2.
NO - Go to step 3.
- Refill and bleed the cooling system.
- With a cold engine, fill the expansion tank to the full mark.
WARRANTY INFORMATION
Covered under the terms of the BMW New Vehicle Limited Warranty for Passenger Cars and Light Trucks.
| Defect Code: | 17 13 00 15 00 |
| Labor Operation: | Labor Allowance: | Description: |
|---|---|---|
| 17 00 009* | Refer to KSD | Checking cooling system for leaks |
Labor operation code 17 00 009 is a Main labor operation. If you are using a Main labor code for another repair, use the Plus code labor operation 17 00 509 instead.
And
Sublet - Bulk Materials
| Sublet Code 4 | See sublet reimbursement calculation below | Reimbursement for replacing the drained quantity of antifreeze/coolant (Bulk container reference 82 14 1 467 704, one gallon container. Do not use this part number for claim submission) |
Sublet calculation: BMW antifreeze/coolant (1 gallon bulk container reference P/N 82 14 1 467 704) for approximately 1 liter (2 liters total) that is needed for this repair (50/50 mixture) at dealer net plus your center's handling.
Enter this material cost in sublet and itemize the amount in the claim comment section.
ATTACHMENTS

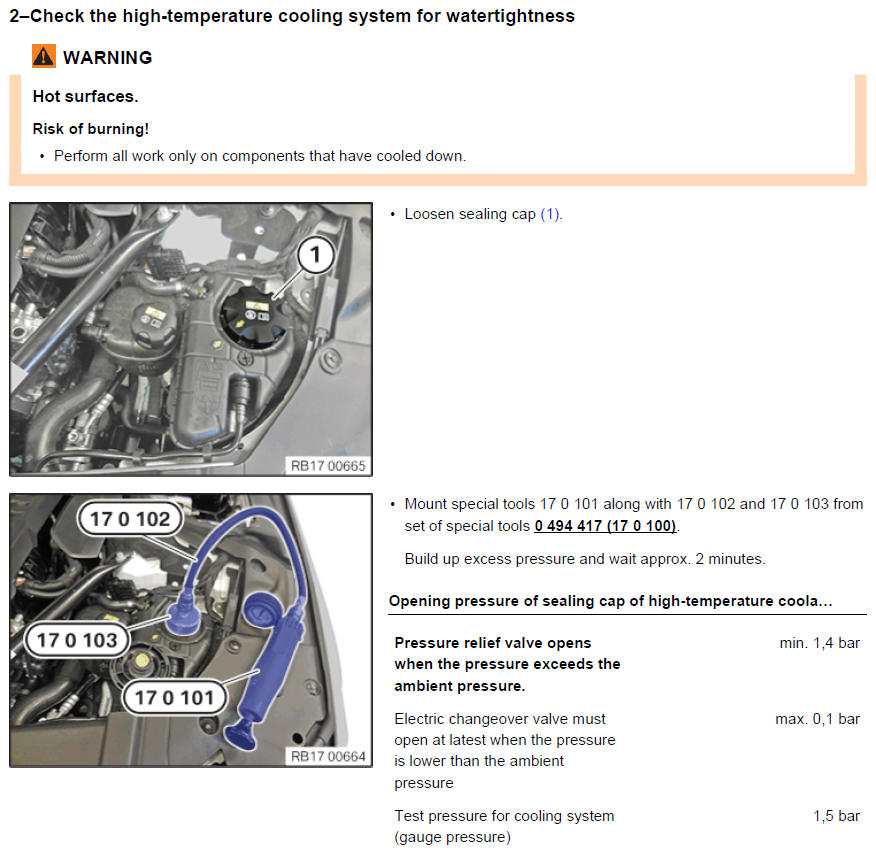

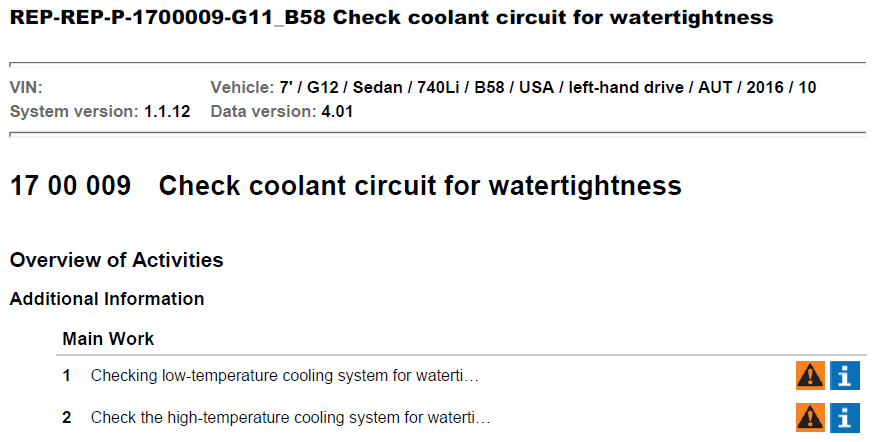

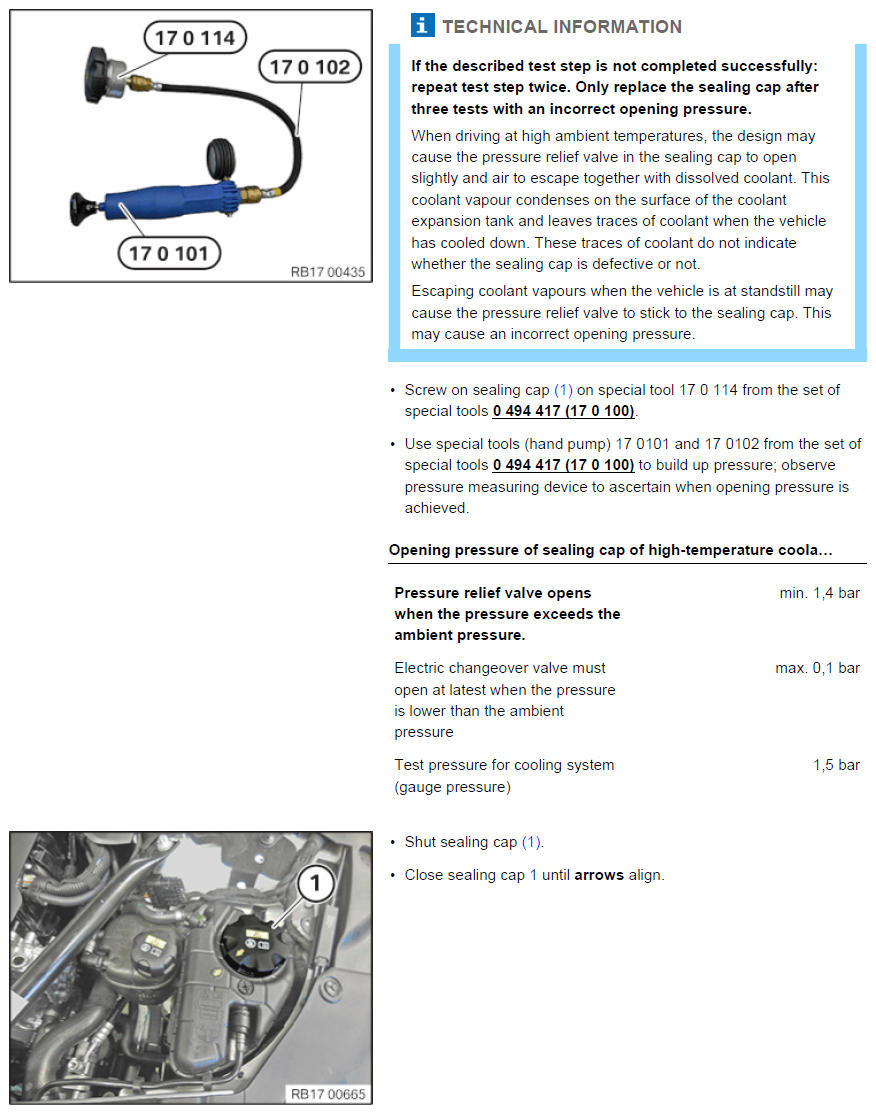

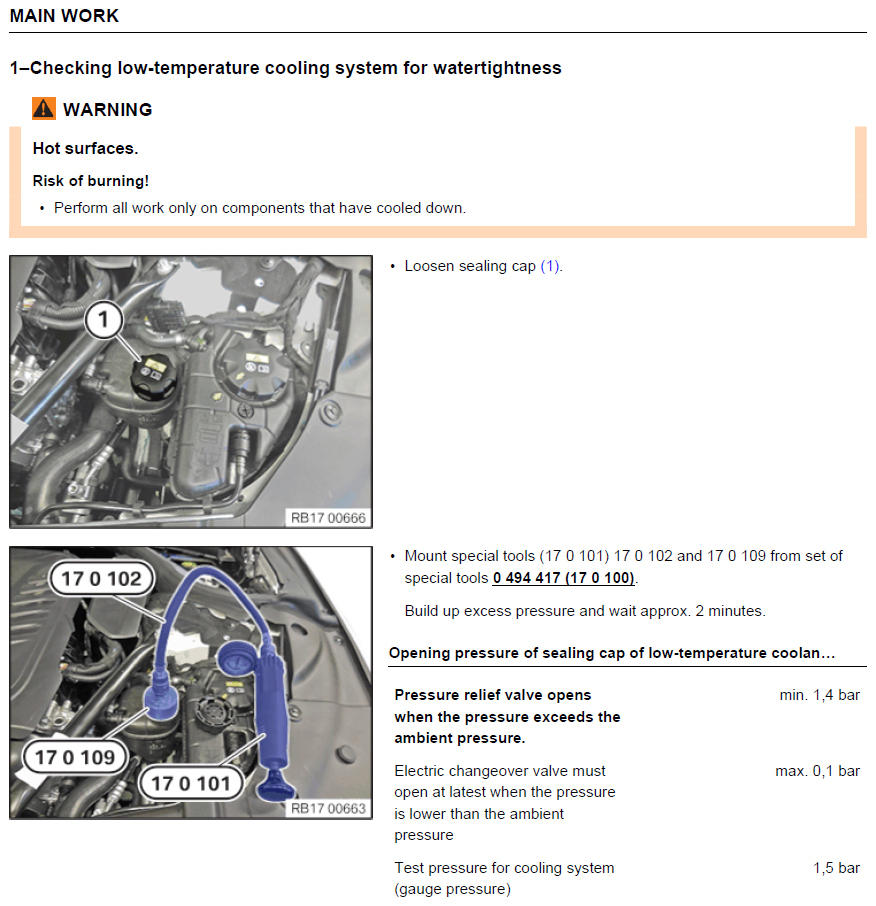

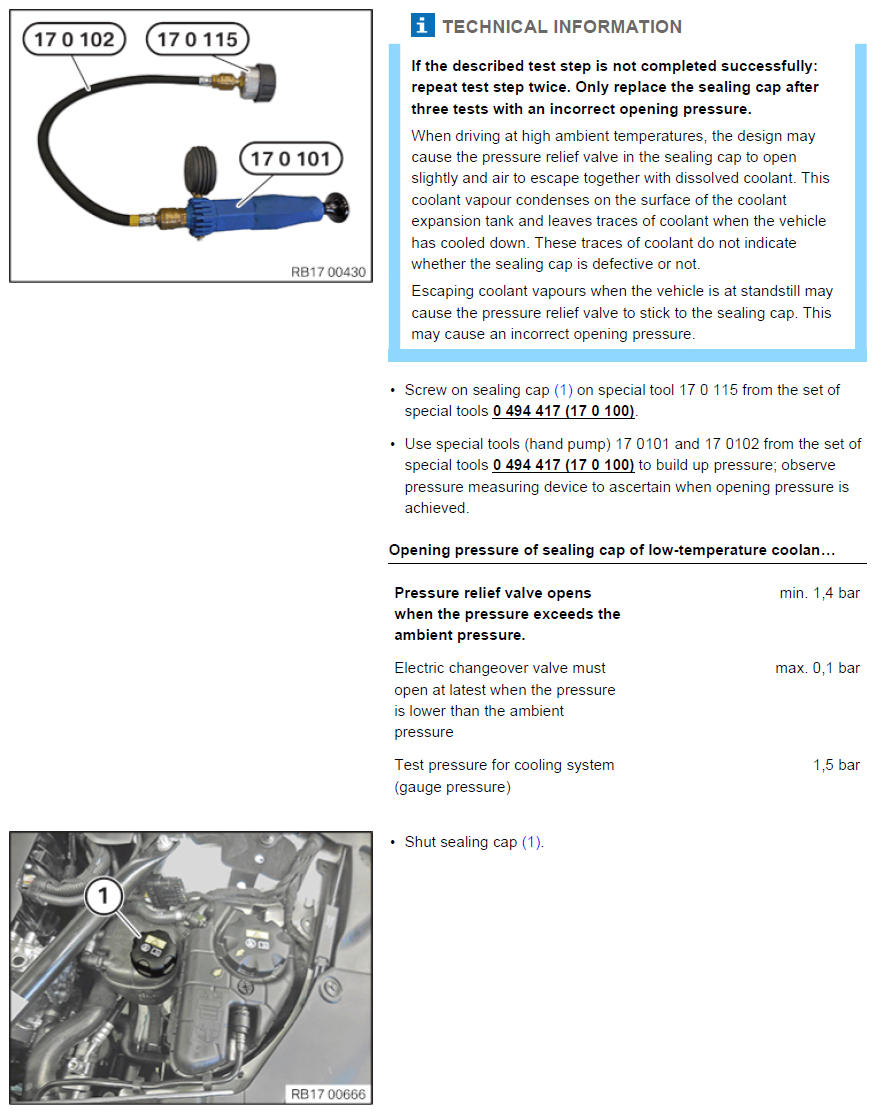

View PDF attachment RA 17 00 009 Check coolant circuit for watertightness .
