New Ecu Validation Needed After Replacing Certain Control Modules (SI B09 02 18)

NEW ECU VALIDATION NEEDED AFTER REPLACING CERTAIN CONTROL MODULES

SERVICE CAMPAIGN BULLETIN

SERVICE INFORMATION

NEW ECU VALIDATION NEEDED AFTER REPLACING CERTAIN CONTROL MODULES

This Service Information Bulletin (Revision 1) replaces SIB 09 02 18 dated November 2018.

What's New  (Specific text highlighted):

• Models
• Manual ECU validation description enhanced (attachment)
• Screenshots updated (attachment)
• Warranty Information updated

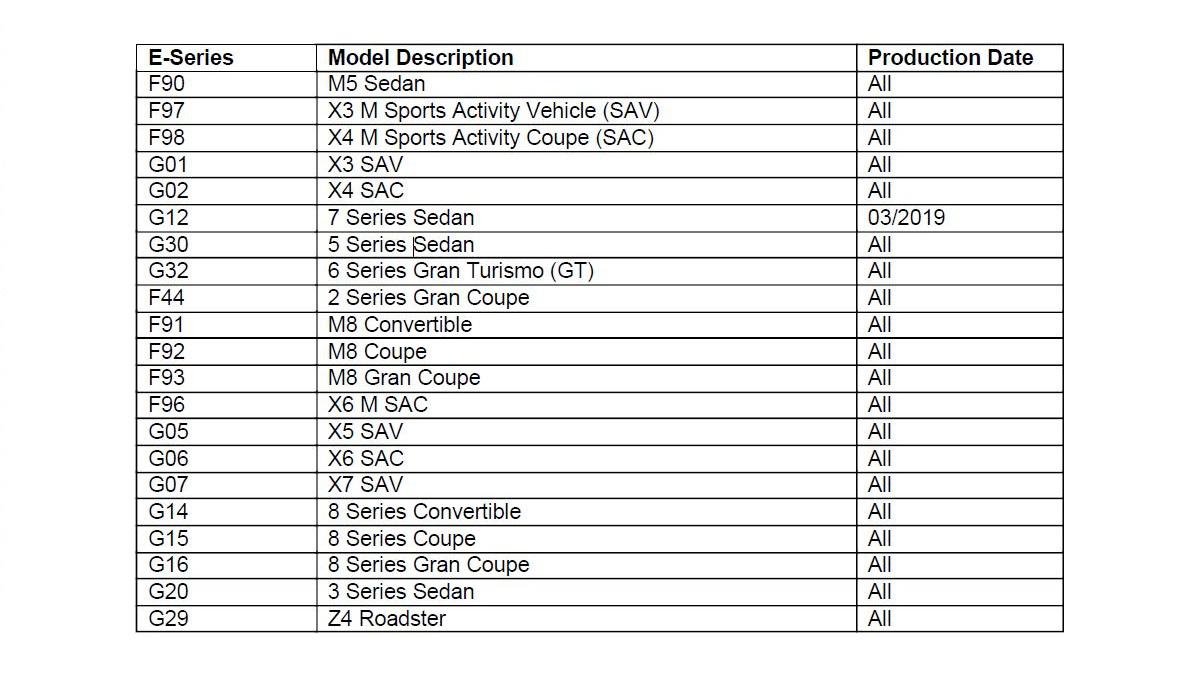

MODEL

SITUATION

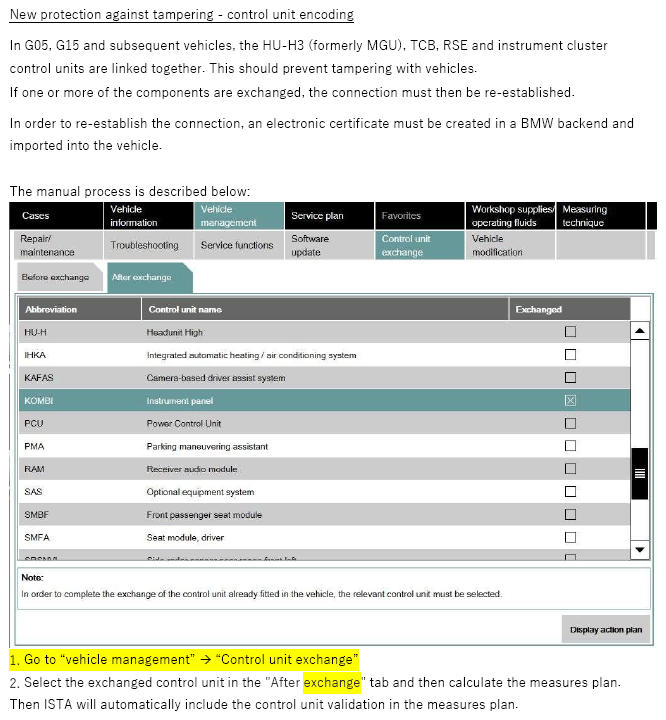

With introduction of the new Headunit HU-H3 (MGU Media Graphics Unit), there is a new protection mechanism against tampering.

If one or more of the following components needs to be replaced, the secure connection between them must be re-established:

• MGU
• TCB Telematic Communication Box (ATM-02)
• RSE Rear Seat Entertainment and/or
• KOMBISP18 instrument cluster

Prior to re-establishing this connection, an electronic certificate must be created in the BMW backend for importing into the Vehicle.

CAUSE

After the replacement of one of the mentioned Modules, the Control Module needs a valid certificate for it to communicate with the other Modules.

CORRECTION

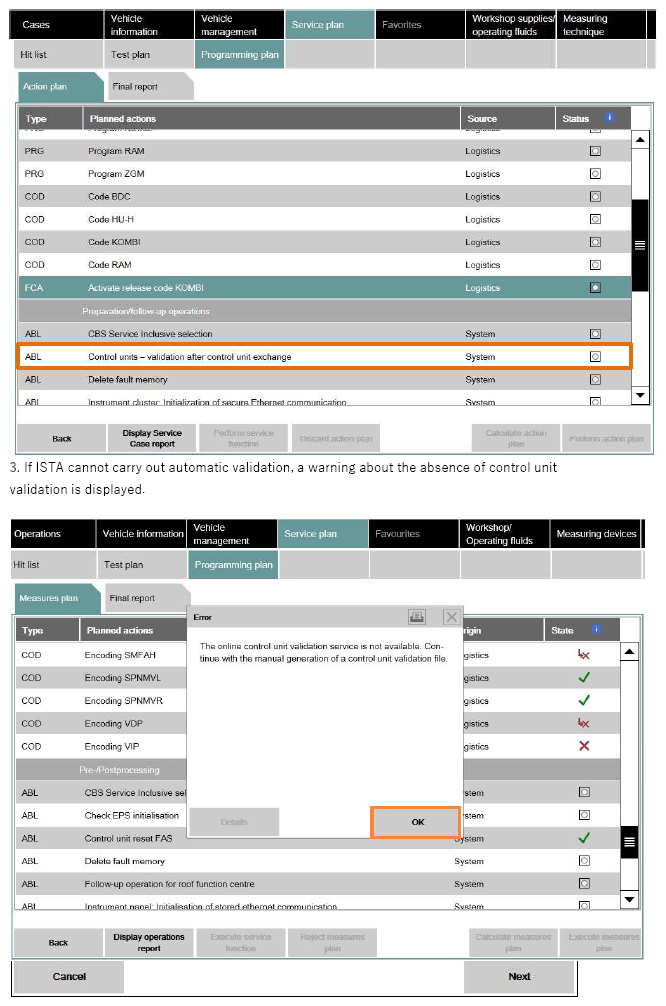

With introduction of ISTA 4.14.1x, the certificates can be created either automatically, or alternatively in manual steps (refer to attachment).

PROCEDURE

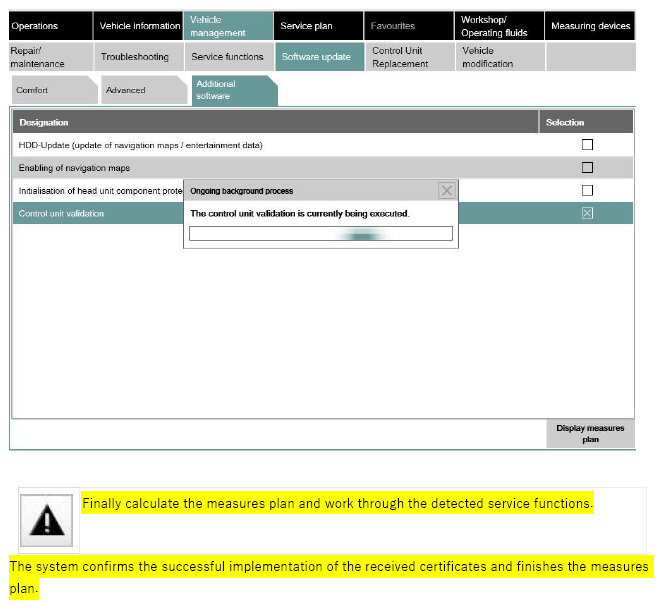

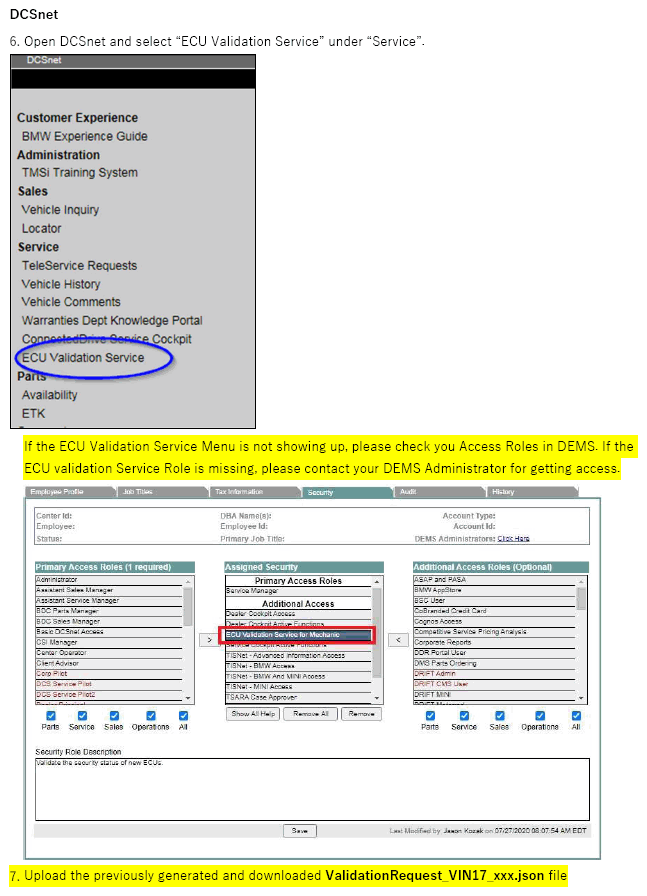

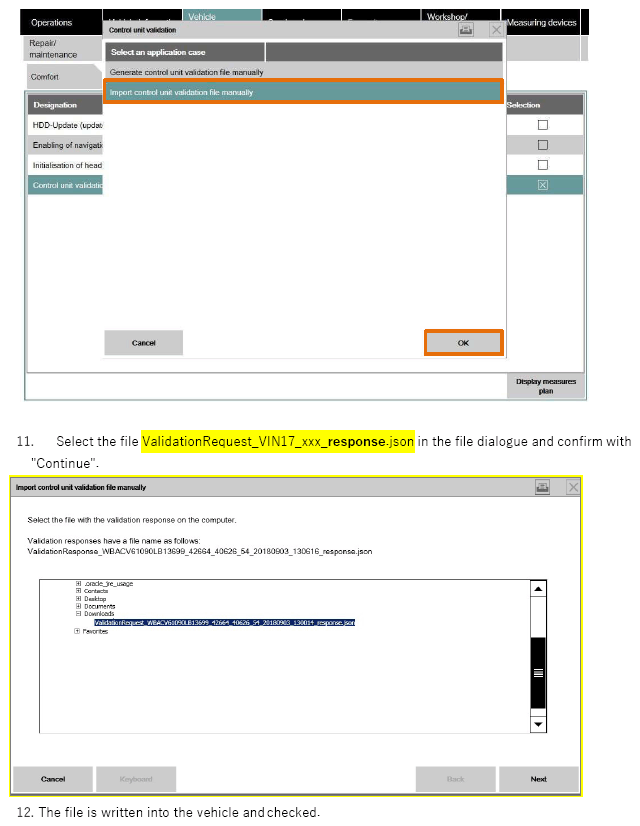

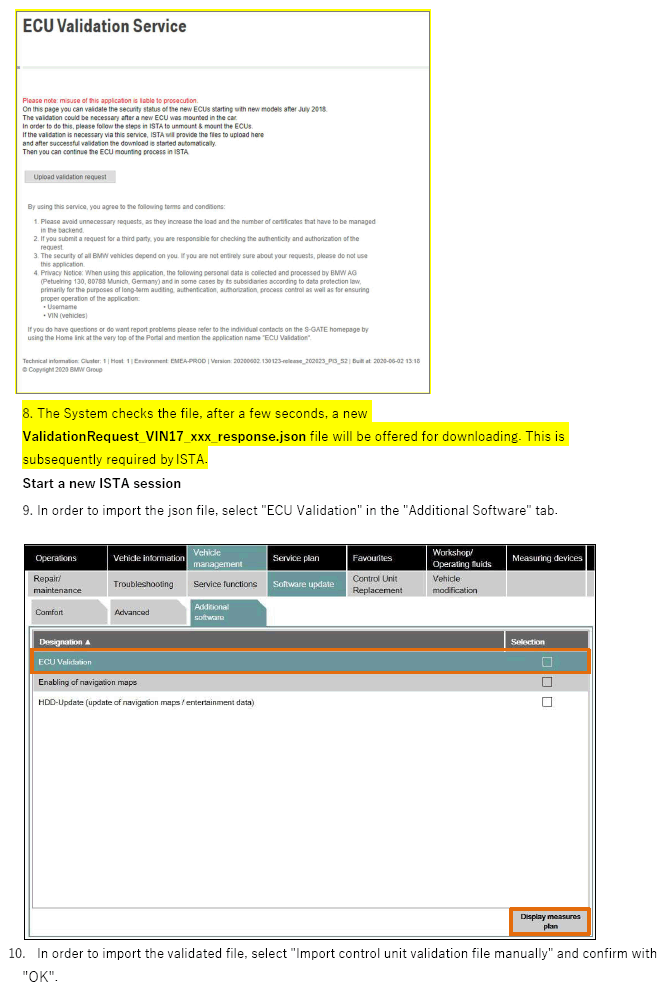

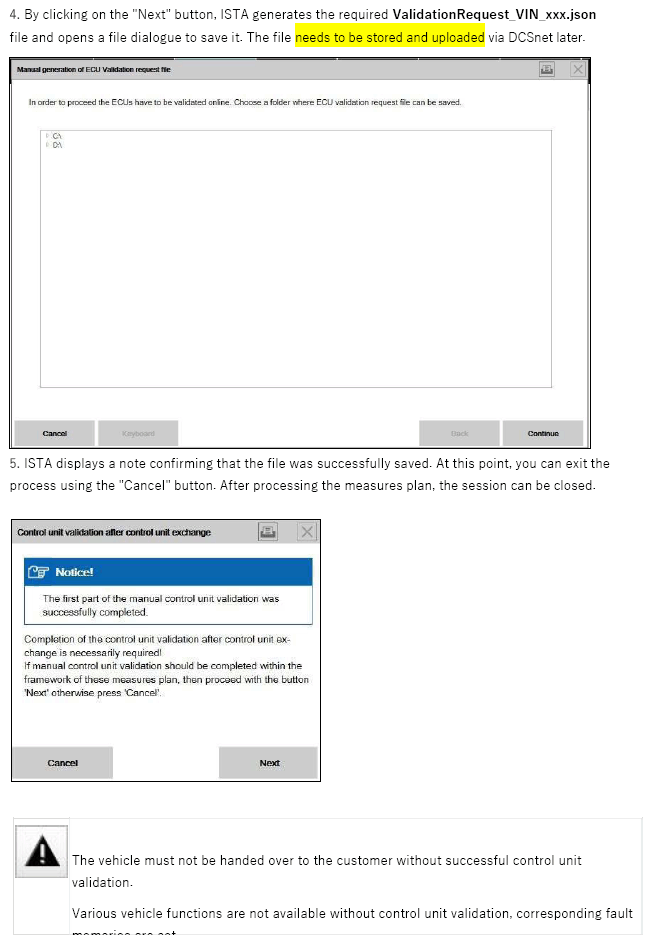

Refer to the attachment for the manual procedure to create a certificate in case the automatic procedure fails.

WARRANTY INFORMATION

This Service Information Bulletin provides Technical Information to aid in understanding the situation described above.

QUESTIONS REGARDING THIS BULLETIN

Technical inquiries	Submit feedback at the top of this bulletin
Warranty inquiries	Submit an IDS ticket to the Warranty Department
Parts inquiries	Submit an IDS ticket to the Parts Department

Supporting Materials

picture as pdf  B09 02 18 Attachment 1.pdf
