Daytime Running Light Is Dim Or Discolored (SI B63 04 18)

Publication date: 2025-04-22
Reference number: SI B63 04 18

DAYTIME RUNNING LIGHT IS DIM OR DISCOLORED

SERVICE CAMPAIGN BULLETIN

Reference Number(s): SI B63 04 18, Date of Issue: April 22, 2025

BMW:	F44 2 Series Gran Coupe; F48 X1 Sports Activity Vehicle; F90 M5 Sedan; G01 X3 Sports Activity Vehicle; G02 X4 Sports Activity Coupe; G05 X5 Sports Activity Vehicle; G06 X6 Sports Activity Coupe; G07 X7 Sports Activity Vehicle; G12 7 Series Sedan; G30 5 Series Sedan; G32 640i xDrive Gran Turismo

SERVICE INFORMATION

This Service Information Bulletin (Revision 7) replaces SI B63 04 18 dated March 2024.

What's New:

New models added

SITUATION

One or more of the LED daytime running lights are dim or discolored.

CAUSE

The connection between the LED module and light tube inside the headlight is damaged.

CORRECTION

Inspect and replace the affected LED module.

Only replace the headlight assembly if internal damage is found to the light tube.

PROCEDURE

Remove the affected LED modules from the headlight following ISTA repair instructions based on the vehicle model.

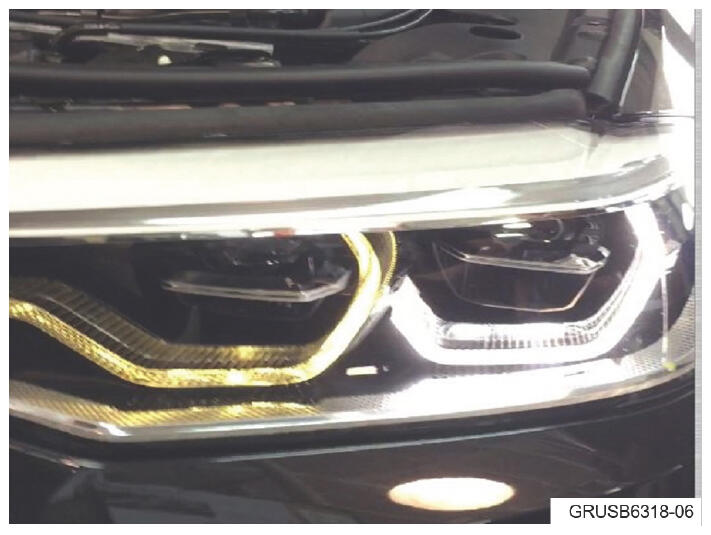

Inspect the LED module for signs of discoloration as seen to the left. If discoloration is present, inspect the light tube of the headlight for signs of discoloration.
Proceed as follows based on your inspection:
Discoloration is present only on the LED module- Replace the affected LED module only, following ISTA/AIR repair instructions based on the vehicle model.

Discoloration is present on the LED module AND the light tube: Replace the complete headlight and the LED module, following ISTA/AIR repair instructions based on the vehicle model.

PARTS INFORMATION

To determine the part number(s) that applies to the specific vehicle being repaired, enter the VIN/chassis number into either ETK or AIR, this will consider the specific equipment and/or options that are fitted to the vehicle.

Part Number	Description	Quantity
Refer to ETK/AIR	LED module, daytime driving lights	1 to 2 as needed
And/or, if necessary:
Refer to ETK/AIR	Headlight LED AHL high left or right***	1 or 2 as needed

(***) For some models, the following components are not included with replacement headlight assembly (Swap over, or if required, replace the applicable component(s) when necessary):

Control unit Frontal Light Electronics
LED turn signal module
LED module daytime driving lights (Item addressed in this SIB)

CLAIM INFORMATION

Covered under the terms of the BMW New Vehicle Limited Warranty for Passenger Cars and Light Trucks.

Plusposition (+)	The vehicle is already in the workshop.
Main work	The vehicle arrives for this repair, no other Main work will be performed/claimed during this workshop visit.
Associated work	Additional/expanded job/work task(s) that are beyond the scope of the corresponding preliminary job/work task (Plusposition or Main)

Only one Main work flat rate labor operation code can be claimed per workshop visit.

Defect Code:

6312356700

Daytime running lights LED discoloration

DIAGNOSIS

Labor Operation	Description	Labor Allowance
63 99 000*	Inspecting the LED modules (Work time)	WT FRU
Or:
00 58 500*	Diagnosis Worktime Flat Rate	2 FRU

Work time labor operation codes 63 99 000 and 00 58 500 are not considered Main labor operations.

And, and together with the diagnosis that applies above, obtain the flat rate unit (FRU) allowances for the following that applies.:

REPLACING LEFT, RIGHT, OR BOTH DAYTIME DRIVING LIGHTS LED MODULE(S)

Labor Operations**		Description	Labor Allowance
Plusposition	Or Main	Removing and installing left headlight	As applicable
And:
63 11 730	63 11 731	Replace left daytime driving lights LED module (Associated work)	As applicable
Or:
Plusposition	Main	Removing and installing right headlamp	As applicable
And:
63 11 734	63 11 735	Replace right daytime driving lights LED module (Associated work)	As applicable
Or:
Plusposition	Main	Remove and install left and right headlights	As applicable
And:
63 11 738	63 11 739	Replace left and right daytime driving lights LED module (Associated work)	As applicable

Or:

REPLACING LEFT, RIGHT, OR BOTH HEADLIGHT ASSEMBLIES *** AND SEE THE NOTE BELOW

Labor Operations**		Description	Labor Allowance
Plusposition	Or Main	Replacing LED headlight, left	As applicable
Or:
Plusposition	Or Main	Replacing LED headlight, right	As applicable
Or:
Plusposition	Or Main	Replacing both LED headlights	As applicable

Or:

REPLACING THE LEFT HEADLIGHT ASSEMBLY AND THE RIGHT DAYTIME DRIVING LIGHT LED MODULE

Labor Operations**		Description	Labor Allowance
Plusposition	Or Main	Replacing LED headlight, left	As applicable
And:
Associated work		Removing and installing right headlamp (Bumper cover disassembled) (Associated work)	As applicable
And:
63 11 734	63 11 735	Replace right daytime driving lights LED module (Associated work)	As applicable

Or:

REPLACING THE RIGHT HEADLIGHT ASSEMBLY AND THE LEFT DAYTIME DRIVING LIGHT LED MODULE

Labor Operations**		Description	Labor Allowance
Plusposition	Or Main	Replacing LED headlight, right	As applicable
And:
Associated work		Removing and installing left headlamp (Bumper cover disassembled ) (Associated work)	As applicable
And:
63 11 730	63 11 731	Replace left daytime driving lights LED module (Associated work)	As applicable

(*) Based on which one applies to your center, please refer to SI B01 01 20 or SI B01 07 20 for the applicable procedure for documenting, claiming, and explaining, on the RO and in the claim comments, your diagnosis work time (WT), job/repair work time (WT), and the vehicle repairs your center performed, unless otherwise required by State law.

BMW GROUP'S AIR APPLICATION RESOURCE FOR FLAT RATE LABOR OPERATION CODES

(**) To "determine the headlight assembly-related" flat rate labor operation codes that apply to the vehicle for the repair being performed, and to obtain the corresponding flat rate unit (FRU) allowance information for "all the applicable flat rate operation codes" from the BMW Group AIR application resource, start by entering the Chassis Number (the last seven (7) characters of the VIN, select the applicable Model if two or more vehicle choices show), or enter the full VIN (17 characters), click on the "Search" button. Next, click on the "Flat Rate Units" button and enter the flat rate labor operation code in the field to the right, click "Search" to display the Flat Rate Unit Group detail choices.

NOTE: The "Replacing LED headlight" assembly labor operation code includes replacing the daytime driving lights LED module (together with the assembly or separately), and when applicable, swapping the remaining reuse items.
