Oil Pump Sprocket Tool (SI B04 10 19)

Publication date: 2019-07-01
Reference number: SI B04 10 19

OIL PUMP SPROCKET TOOL

TECHNICAL SERVICE BULLETIN

Reference Number(s): B04 10 19, Date of Issue: July 01, 2019

BMW:	All Models With B3x, B4x or B5x engine
GROUP:	Tools and Equipment

SITUATION

Distribution of the following tool will be through the Automatic Tool Shipment Program. Additional tools may be purchased through your Regional Distribution Center (RDC). All prices in this bulletin are introductory prices and are only valid during the Automatic Tool Shipment.

Shipments of special tools may be delayed up to 2 weeks (after publication) depending on the RDC workload.

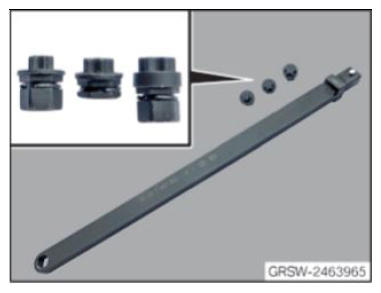

Oil Pump Sprocket Tool Order P/N 83 30 2 463 965

Price= $60.00

Included

Extension
T30
T40
T45

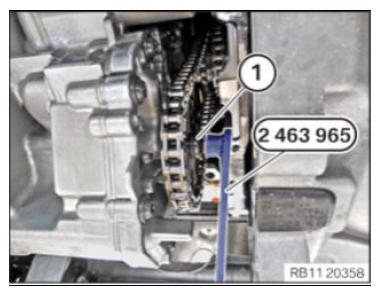

Use - to R&R the bolt on the oil pump sprocket
For complete detailed information on this tool refer to ISTA Repair Manual section 11 41 000 (B48TU1).

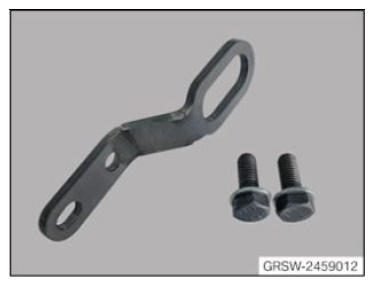

Holder Order P/N 83 30 2 459 012 Price= $21.00

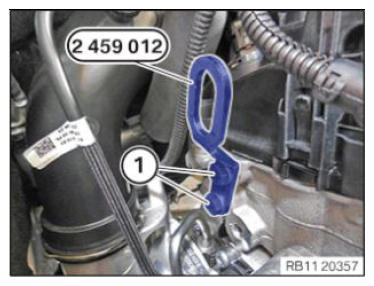

Use - to R&R the cylinder head
For complete detailed information on this tool refer to ISTA Repair Manual section 11 12 100 (B48TU1).

WARRANTY INFORMATION

Terms of the Parts department Special Tool Warranty can be viewed and printed by following the path below:

Go to TIS 2
Select "Tools and Equipment."
Select "FAQ & Top Links
Select "Special Tool Warranty Information."
