Noise From Driver Or Passenger Seat Upon Load Reversal (SI B52 06 21)
Publication date: 2021-10-04Reference number: SI B52 06 21
NOISE FROM DRIVER OR PASSENGER SEAT UPON LOAD REVERSAL
SERVICE CAMPAIGN BULLETIN
| BMW: | G12 (7 Series Sedan); G30 (5 Series Sedan); G32 (640i xDrive Gran Turismo) |
SERVICE INFORMATION
This Service Information bulletin (Revision 1) supersedes SI B52 06 21 dated June 2021.
What's New:
- Flat rate labor operation descriptions corrected
SITUATION
The driver's seat and/or passenger seat rattles ("cracking" noise) during load reversal. There is a slight movement in the seat that is most noticeable when moving forwards and backwards.
CAUSE
Unfavorable tolerance of the connecting elements on the seat.
CORRECTION
Replace the front outer bolt on the affected seat(s).
PROCEDURE
Proceed as follows.
- Confirm customer complaint; check both seats.
- Remove cover on the outer front seat base.

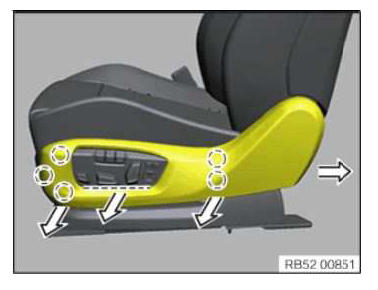

Unclip the cover from the front to rear in the direction of the arrow (G12 shown; other models' seats are similar).
Observe repair instructions 52 14 040.

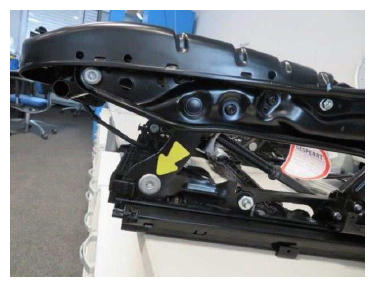

- Replace the front outer bolt with part number 52 10 5 A13 770.
This new bolt has a captive washer.

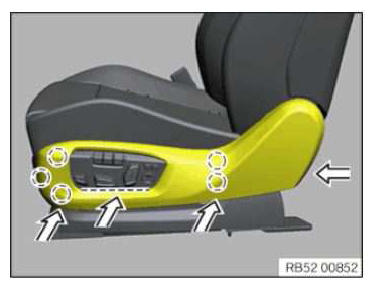

NOTE: Torque bolt to 25 Nm - Clip the cover in from the rear to the front in the direction of the arrow (G12 shown).
- Then reassess the vehicle.
PARTS INFORMATION
Obtain and confirm the part numbers for your specific vehicle by entering the chassis number in either ETK or AIR which takes into account specific equipment and/or options.
Obtain and confirm the part numbers for your specific vehicle by entering the chassis number in either ETK or AIR which takes into account specific equipment and/or options.
| Part Number | Description | Quantity |
|---|---|---|
| 52 10 5 A13 770 | Set spare parts rocking chair | 2 per vehicle max |
CLAIM INFORMATION
Covered under the terms of the BMW New Vehicle Limited Warranty for Passenger Cars and Light Trucks.
| Defect Code: | 5210103900 | Seat pan, front seat Unpleasant noises |
Repairing one side
| Labor Operation | Description | Labor Allowance |
|---|---|---|
| 52 14 040 | Removing and installing/replacing outer cover on left or right front seat (Main work) | Refer to AIR |
| Or: | ||
| 52 14 539 | Removing and installing/replacing outer cover on left or right front seat (Plus work) | Refer to AIR |
| And: | ||
| 52 99 000 | Work time to replace the front outer bolt and washer (One side) | 2 FRU |
Or:
Repairing both sides
| Labor Operation | Description | Labor Allowance |
|---|---|---|
| 52 14 040 | Removing and installing/replacing outer cover on left or right front seat (Main work) | Refer to AIR |
| Or: | ||
| 52 14 539 | Removing and installing/replacing outer cover on left or right front seat (Plus work) | Refer to AIR |
| And: | ||
| 52 99 000 | Work time for removing and installing/replacing outer cover on the other side and replacing the front outer bolts and washers (Both sides) | 4 FRU |
If you are using a Main labor code for another repair, use the Plus code labor operation 52 14 539 instead of 52 14 040.
Refer to AIR for the corresponding flat rate unit (FRU) allowances.
Based on which one applies to your center, please refer to SI B01 01 20 or B01 07 20 for claiming your diagnosis work time, job/repair work time (WT), RO/Claim WT and/or repair explanation procedures, unless otherwise required by State law.
WARRANTY INFORMATION
Covered under the terms of the BMW New Vehicle Limited Warranty for Passenger Cars and Light Trucks.
| Defect Code: | 5210103900 | Seat pan, front seat Unpleasant noises |
Repairing one side
| Labor Operation | Description | Labor Allowance |
|---|---|---|
| 52 14 040 | Removing and installing/replacing protective cap on left or right outside rearview mirror (Main work) | Refer to AIR |
| Or: | ||
| 52 14 539 | Removing and installing/replacing protective cap on left or right outside rearview mirror (Plus work) | Refer to AIR |
| Or: | ||
| 52 99 000 | Work time to replace the front outer bolt and washer (One side) | 2 FRU |
Or:
Repairing both sides
| Labor Operation | Description | Labor Allowance |
|---|---|---|
| 52 14 040 | Removing and installing protective cap on left or right outside rearview mirror (Main work) | Refer to AIR |
| Or: | ||
| 52 14 539 | Removing and installing protective cap on left or right outside rearview mirror (Plus work) | Refer to AIR |
| Or: | ||
| 52 99 000 | Work time for removing and installing protective cap on the other side and replacing the front outer bolts and washers (Both sides) | 4 FRU |
If you are using a Main labor code for another repair, use the Plus code labor operation 52 14 539 instead of 52 14 040.
Refer to AIR for the corresponding flat rate unit (FRU) allowances.
As applicable to your center, please refer to SI B01 01 20 or B01 07 20 for claiming your diagnosis work time, job/repair work time (WT), RO/Claim WT and/or repair explanation procedures, unless otherwise required by State law.
QUESTIONS REGARDING THIS BULLETIN
| Technical inquiries | Submit feedback at the top of this bulletin |
| Warranty inquiries | Please contact the Warranty department by either using the Live Chat that's available in the Warranty Documentation Portal or through IDS by selecting Coverage, Policy, Coding Questions and Mileage Corrections |
| Parts inquiries | Submit an IDS ticket to the Parts Department |
