Unusual Noises While Moving The Electric Steering Column In The Axial Direction (SI B32 02 23)
Publication date: 2024-01-04Reference number: SI B32 02 23
UNUSUAL NOISES WHILE MOVING THE ELECTRIC STEERING COLUMN IN THE AXIAL DIRECTION
SERVICE CAMPAIGN BULLETIN
| BMW: | F90 (M5 Sedan); F91 (M8 Convertible); F92 (M8 Coupe); F93 (M8 Gran Coupe); F95 (X5 M Sports Activity Vehicle); F96 (X6 M Sports Activity Coupe); G05 (X5 Sports Activity Vehicle); G06 (X6 Sports Activity Coupe); G07 (X7 Sports Activity Vehicle); G12 (7 Series Sedan); G14 (8 Series Convertible); G15 (8 Series Coupe); G16 (8 Series Gran Coupe); G30 (5 Series Sedan); G32 (640i xDrive Gran Turismo) |
SERVICE INFORMATION
This Service Information Bulletin (Revision 1) replaces SI B32 02 23 dated August 2023.
What's New (Specific text highlighted):
- Procedure
SITUATION
Unusual noises occur only when operating the steering column in the axial direction.
- A one-time thump sound at the start of movement
Shortly after the steering column starts moving, retracting, or extending, a one-time thump noise is heard. See attached video V32 03 23
multimedia:A supplement to the article is available. - Humming noise while steering column extends in the axial direction.
The sound is only heard when the steering column is extended, not when the steering column is retracted.
When the steering column starts to move in the extended direction, the humming noise can be heard. See attached video V32 04 23
CAUSE
An excessively high break-away force of the spline shaft when starting the steering shaft movement causes a frictional vibration.

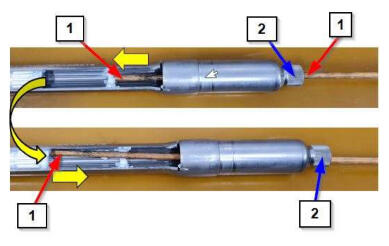

The high break-away force of the splined shaft (1) is caused by the inadequate distribution or the thickening of grease in certain areas of the splined shaft. Steering wheel shaft (2), steering wheel connection (3).
CORRECTION
Re-distribution of the grease in the internal gearing of the steering wheel shaft (2), in the image above
PROCEDURE
- Remove the steering wheel as per REP 32 33 001/501 or 010/510
- Move the steering column in the extended direction as far as possible towards the driver.
- Through the opening of the steering wheel shaft (2), ensure the even distribution of grease in the internal gearing of the steering wheel shaft.
Insert a long thin object, such as a vacuum hose (1), minimum length 30cm, into the internal gearing of the steering wheel shaft and evenly distribute the grease. See attached video V32 05 23
In some cases, the grease may be located at the bottom of the shaft and will need to be pulled up to evenly distribute on the internal gearing of the steering wheel shaft.
PARTS INFORMATION
Not required.
CLAIM INFORMATION
Covered under the terms of the BMW New Vehicle Limited Warranty for Passenger Cars and Light Trucks.
