Installing the front brake discs
NOTE:
TECHNICAL INFORMATION
Brake discs must only be replaced in pairs (per axle).
Fit new brake discs only together with new brake pads.
Brake discs must only be replaced in pairs (per axle).
Fit new brake discs only together with new brake pads.

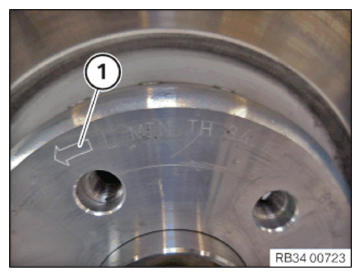

- If an arrow 1 is engraved on the brake disk, it must point in the driving direction!
In this case, the left and right brake discs are different!
- Clean contact surface of wheel hub thoroughly and remove any traces of rust if necessary.
Irregularities in the contact surface can cause distortion in the brake disc!

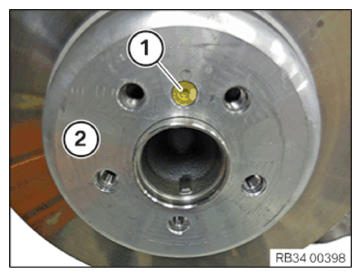

- Mount brake disc (2).
- Position and tighten the screw (1).
- Replace screw.
Parts: Screw
TIGHTENING TORQUES SPECIFICATION
| Brake disc to front wheel hub | ||
| M8 Replace screw. |
Tightening torque | 16 Nm |
Follow-up work
- Grease the BRAKE PADS , the brake anchor plate and the brake caliper with the brake pad paste (17-inch low brake).
- Install front BRAKE PADS (17-inch low brake).
- Install the front brake pad WEAR SENSOR .
- Install the front left and right WHEELS .
- COMMISSION/BEDD IN new brake pads and brake discs.
