Removing the electric vacuum pump

NOTE: DANGER
High-voltage system.
The high-voltage system operates on the basis of hazardous, electrical voltage and high currents. Mortal hazard through electric shock!

All work on the high-voltage system may only be carried out by specially trained and technically experienced personnel.
For additional information see:
61 00... SAFETY INSTRUCTIONS on handling hybrid cars
For additional Information see:
61 25... NOTES on repair of high-voltage battery unit

Preliminary work

Remove the WHEEL .
Remove the right front side UNDERSHLELD .

WARNING: Vehicle may slip off the vehicle hoist If the vehicle hoist is handled Incorrectly.
Danger! Immobilization period-threatening injuries!

Observe safety instructions on raising the vehicle using a vehicle hoist.
For additional Information see: 00... Raise the vehicle using a VEHICLE LIFT .

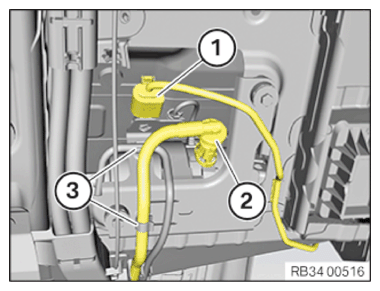

Unlock plug connection (1) and disconnect.
Unlock and detach snap fastener (2).
Detach the vacuum line from the holders (3).

Courtesy of BMW OF NORTH AMERICA, INC.

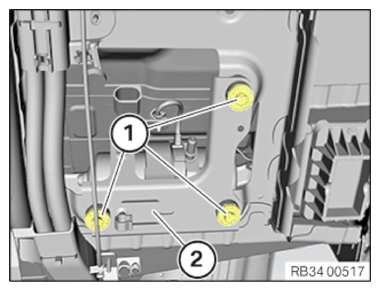

Loosen the screws (1) and lower the electrical vacuum pump (2).

Courtesy of BMW OF NORTH AMERICA, INC.

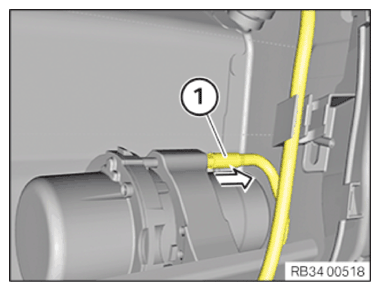

Detach the vent hose (1) in the direction of the arrow.
Removing the electrical vacuum pump.

Courtesy of BMW OF NORTH AMERICA, INC.
